Terex Atlas Parts Catalog

This parts catalog consists of following sections:

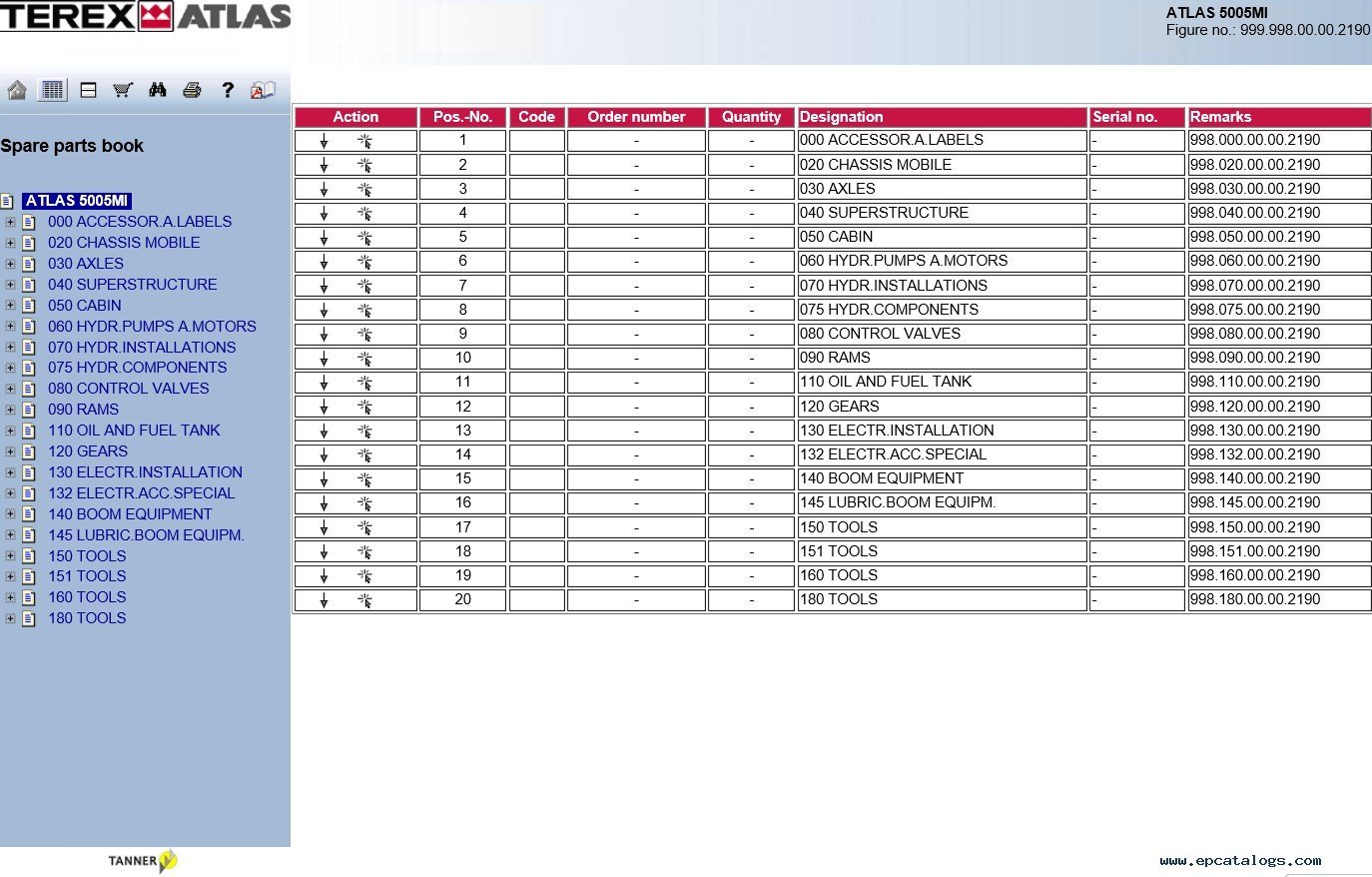

- Parts list
Parts list represents assemblies or parts contained in a machine.
- Drawing
Drawing shows all parts of the assembly marked in the hierarchy.

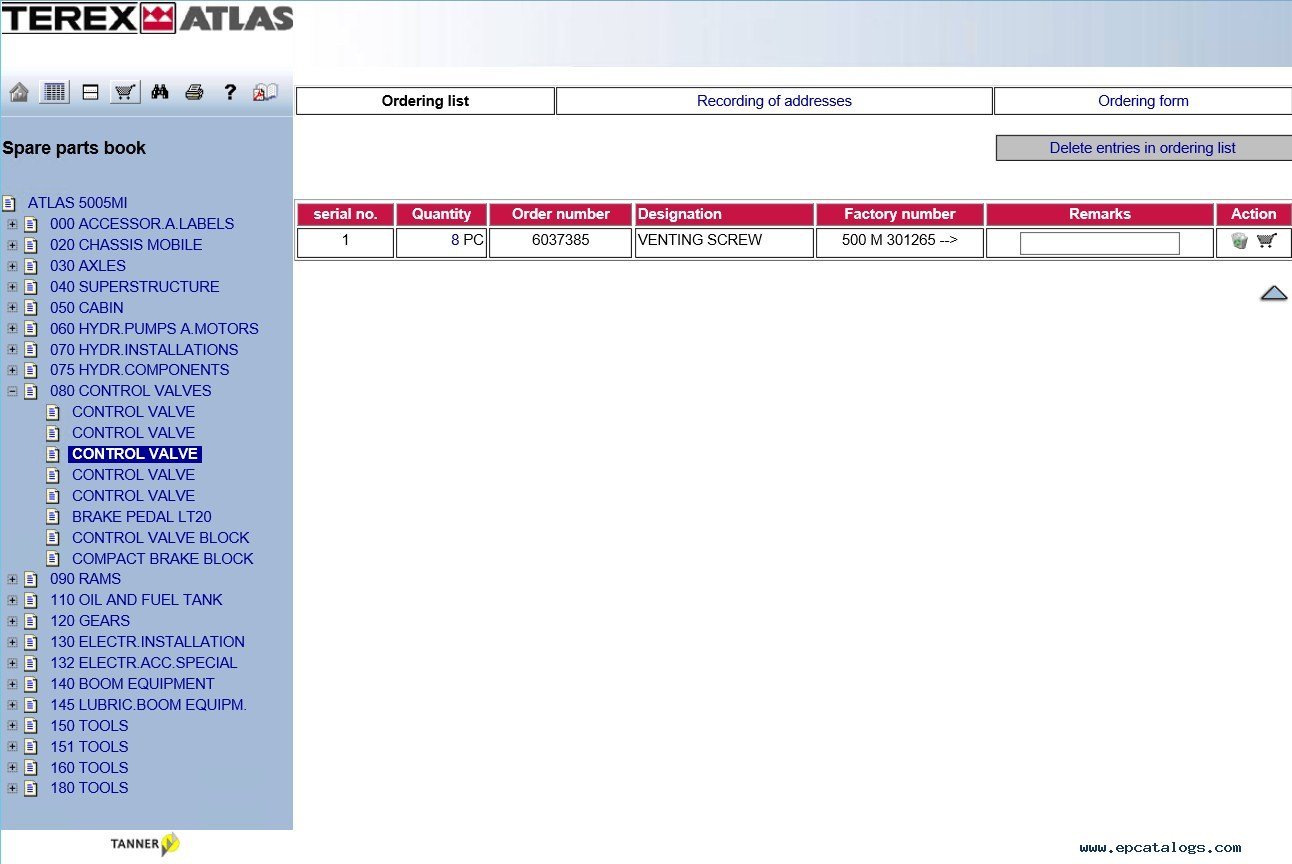

- Shopping basket
In shopping basket you can: process the order list, change the address and change to the order form.

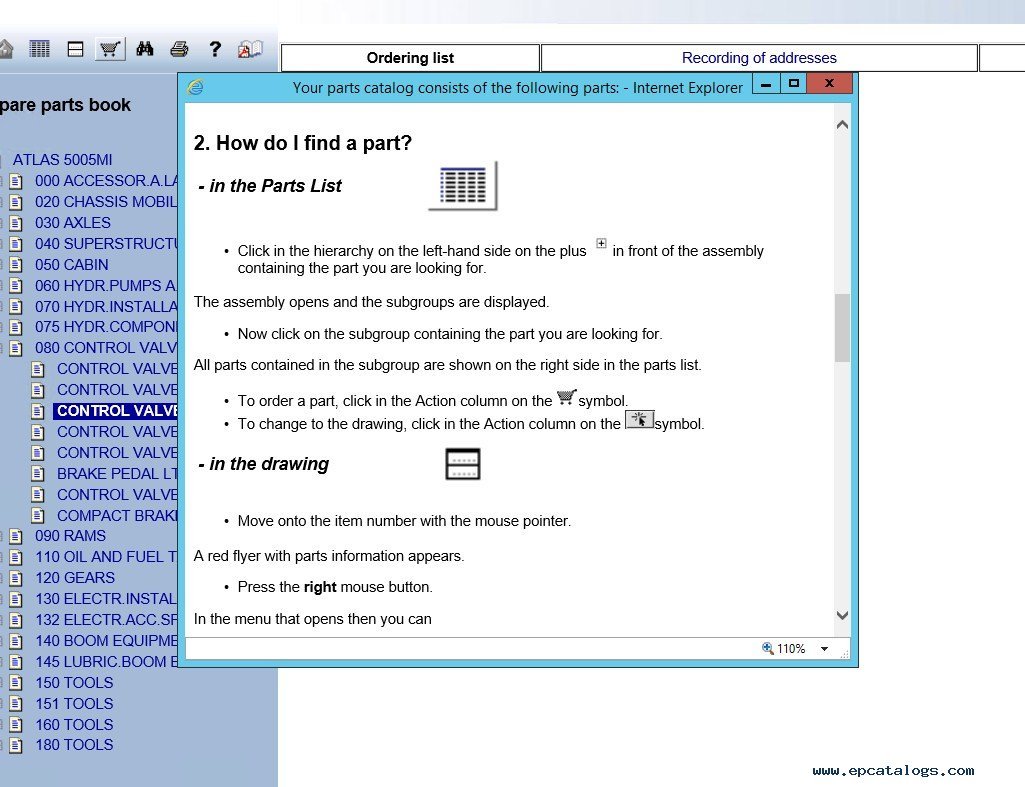

- Find
Find function enables you to find a part via the name or the order-number.

Operating manual is not availible in this version of the spare parts catalogue.

Manuals cover:
Accessor.A.Labels
Chassis Mobile
Axles
Superstructure
Cabin
Hydraulic Pumps A.Motors
Hydraulic Installations
Hydraulic Components
Control Valves
Rams
Oil And Fuel Tank
Gears
Electrical Installation
Electrical Acc. Special
Boom Equipment
Lubric. Boom Equipm.
Tools

List of models:

ATLAS 1304 M Cab.1501 ( Factory number: 135 M 302300 --> )
ATLAS 1304 M Cab.1503 ( Factory number: 135 M 302300 --> )
ATLAS 1305 LC ( Factory number: Serie 145 )
ATLAS 1305 Mobil ( Factory number: SERIE 145 )
ATLAS 1404 KZW ( Factory number: SERIE 241 )
ATLAS 1404 MK ( Factory number: SERIE 241 )
ATLAS 1505 Mobil ( Factory number: SERIE 155 )
ATLAS 1505 MI ( Factory number: Serie 155 )
ATLAS 1604 MK ( Factory number: SERIE 168 )
ATLAS 1605 Mobil ( Factory number: SERIE 165 )
TEREX 1605 M ( Factory number: 165 M 301474 --> )
ATLAS 1605 LC ( Factory number: SERIE 165 )
ATLAS 1705 MOBIL ( Factory number: SERIE 175 )
ATLAS 1805 M ( Factory number: 180 M 301265 --> )
ATLAS 1905 M ( Factory number: Serie 195 )
ATLAS 1905 MI ( Factory number: Serie 195 )
ATLAS 2005 M ( Factory number: 200 M 301265 --> )

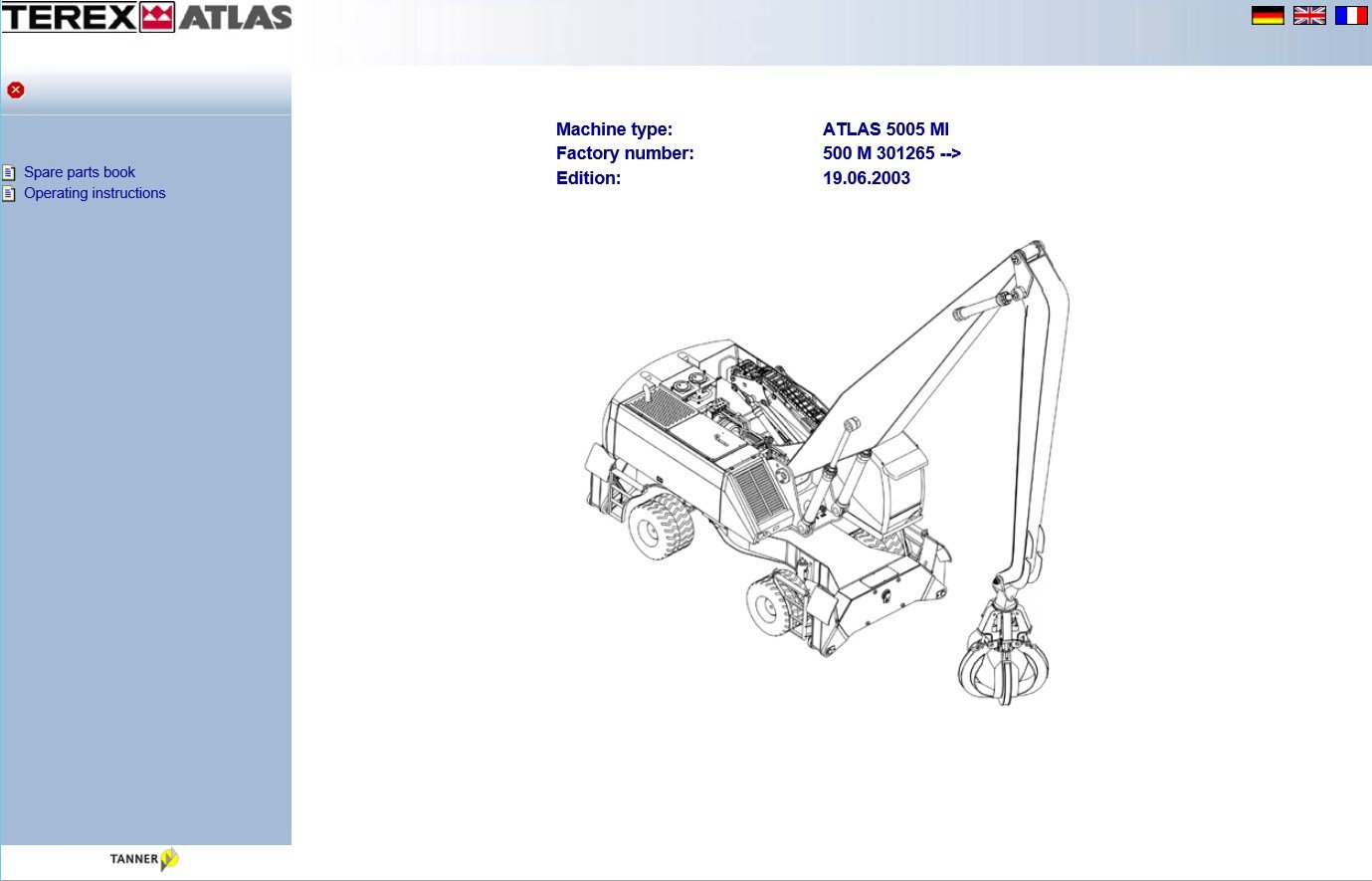

ATLAS 5005 MI ( Factory number: 500 M 301265 --> )

ATLAS-TEREX CABINE 1503
TEREX CABINE 1508
