Takeuchi TB153FR Compact Excavator PDF Workshop Manual

The detailed description of the Takeuchi TB153FR manual:

To your attention is presented set of manuals for use, maintenance, and repair excavator Takeuchi TB 153 FR. Program Takeuchi is presented as a manual for operation, maintenance, and repair of excavators of this brand. These excavators have good maneuverability and will be convenient to use in narrow streets and blocks. This set of manuals is intended for persons who engage in maintenance operations and explains procedures for disassembly and reassembly of the machine, check and maintenance procedures, troubleshooting and outline specifications, etc for Takeuchi TB 153 FR. Takeuchi set includes two files, which complete each other.

This guide is intended not only for trained and qualified personnel but also for persons who had no previous experience in using this equipment. It is very important to familiarize yourself with the safety rules before use, this will help you avoid tearing and breaking your equipment. If you buy this manual and use it for every repair and maintenance procedure - you will be satisfied with the quality and durability of your equipment. This will prolong the quality work of your excavator for many years. These manuals describe the step-by-step instruction, instructions for assembling and dismantling the engine parts, fuel system, ignition system, clutch, suspension, brakes, lubrication, battery, as well as detailed electrical diagrams, many photographs, drawings, different tables, etc.

These workshop manuals have a convenient and easy-to-use interface that supports English. The manual has two files witch delivered in PDF format. All pages are available for printing.

Set includes follow manuals:

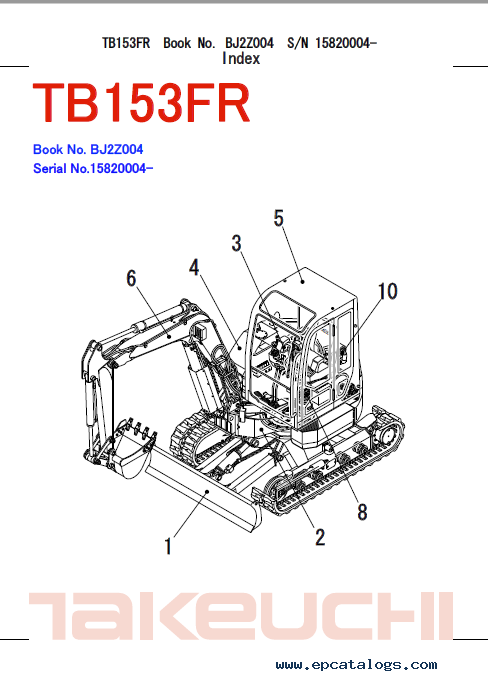

Takeuchi TB153FR Compact Excavator - Parts Manual Serial No.15820004
Takeuchi TB153FR Compact Excavator - Workshop Manual Book No.CJ2E000

Models:

TB153FR

Table of contents:

1.GENERAL
2.SPECIFICATIONS
3.MACHINE CONFIGURATION

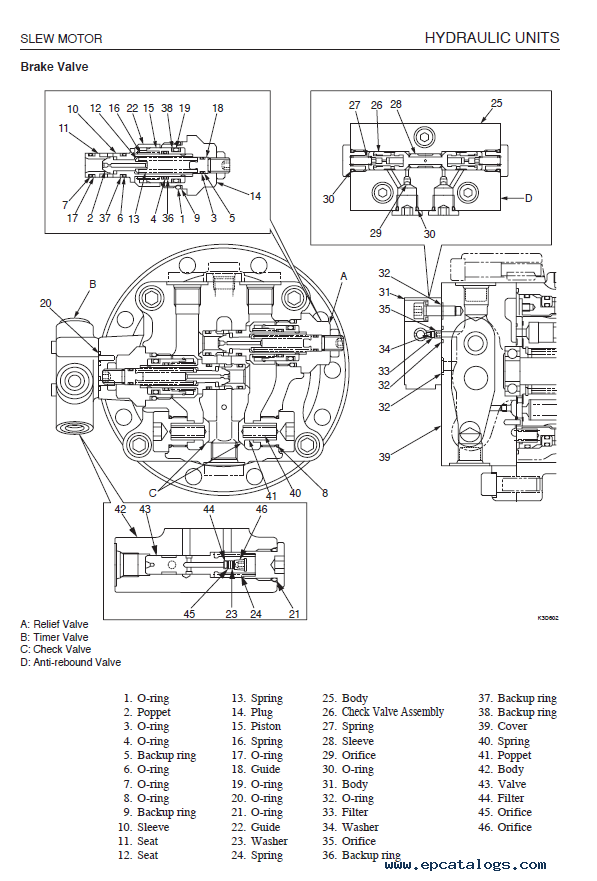

4.HYDRAULIC UNITS
5.TROUBLESHOOTING
6.ENGINE
