New Holland E70BSR Hydraulic Excavator Service Manual PDF

Service manual contains detailed repair and service information for New Holland hydraulic excavator E70BSR.
This service manual is prepared as a technical material in which the information necessary for the maintenance and repairing services of our hydraulic excavators are collected, and is categorized into 7 Chapters, Specification, Maintenance, System, Disassembly, Troubleshooting, Engine, and Installation Procedures for Optional Attachment.
This manual provides complete repair and maintenance instructions, fitting instructions, technical specifications for New Holland hydraulic excavator.
Service manual is designed to work on a personal computer with Windows & Mac. This manual comes in PDF format, which contains 891 pages, any one of which we can be printed easily. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

Applicable Machines:
YT05-15001~

INDEX:

• SPECIFICATIONS
  • Outline
  • Specifications
  • Attachment Dimensions
• MAINTENANCE

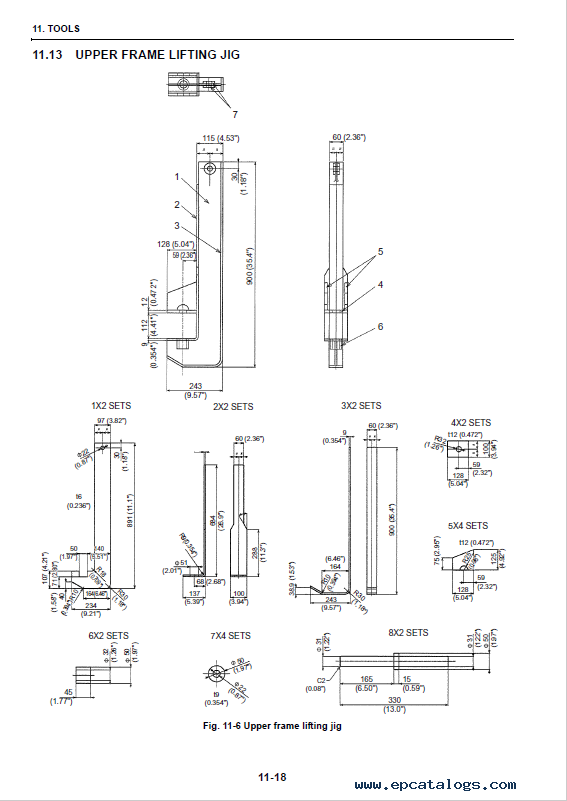

  • Tools
  • Standard Maintenance Time Schedule
  • Maintenance Standard And Test Procedure
• SYSTEM
  • Mechatro Control System
  • Hydraulic System
  • Electric System
  • Components System
  • Air-Conditioner System
• DISASSEMBLING
  • Disassembling & Assembling
  • Attachment

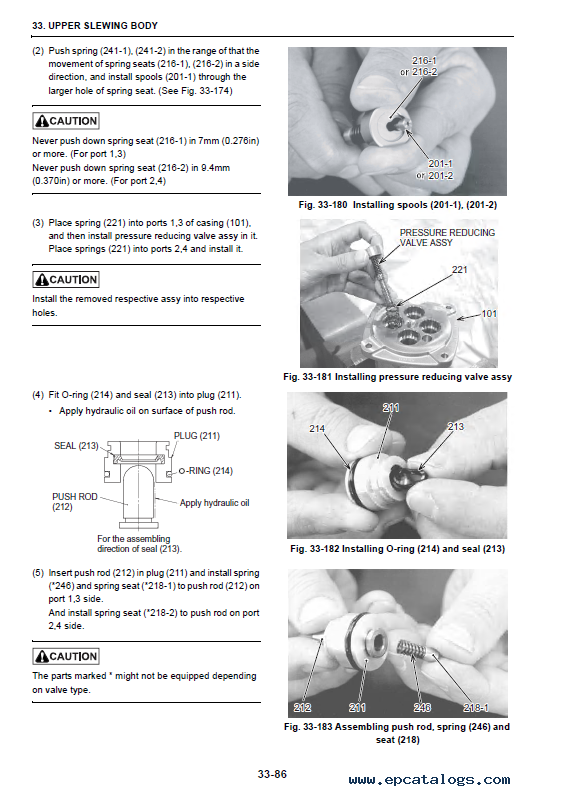

  • Upper Structure
  • Travel System
• TROUBLESHOOTING
  • By Error Codes
  • By Trouble
• E/G
  • Engine

+ Isuzu Industrial Diesel Engine AU-4LE2X Model Workshop Manual

Compact model of excavators E70BSR NEW HOLLAND FORD characterized maximum capacity, comfortable workspace, modern hydraulic system, increased performance and reliability, improved fuel efficiency.
