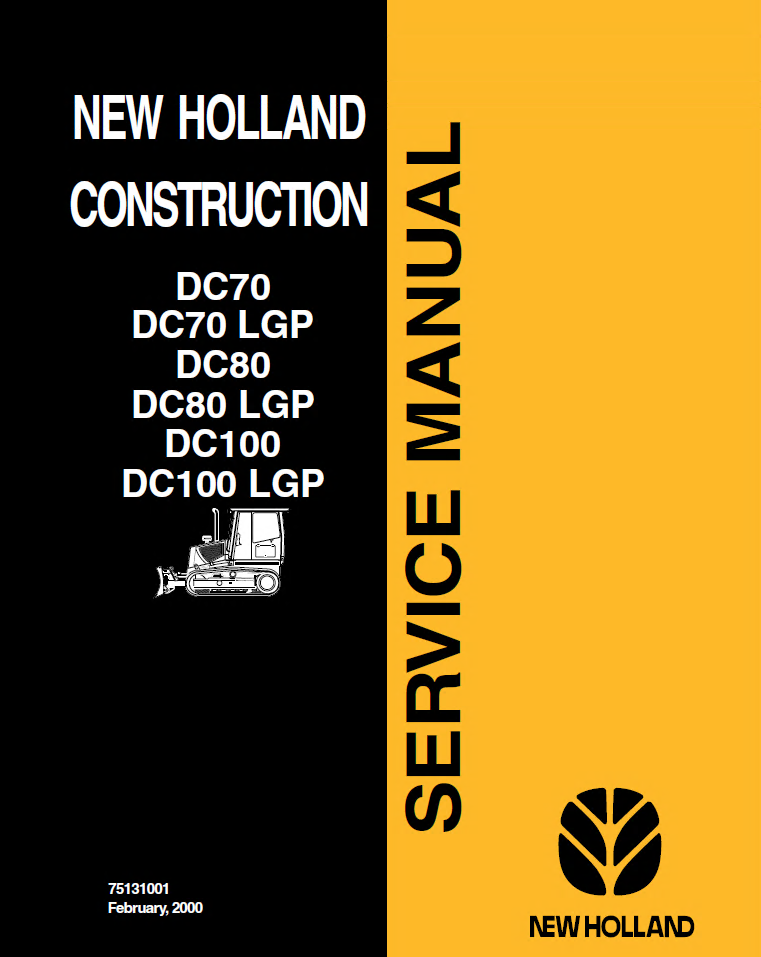

New Holland DC70 DC70LGP DC80 DC80LGP DC100 DC100LGP PDF Service Manual PDF

This electronic service manual is a detailed source of important technical information, step by step instructions, repair procedures for anyone with dozers New Holland, which itself wants to improve the quality of service and repair their own equipment.

Covers models:
DC70,
DC70LGP,
DC80,
DC80LGP,
DC100,
DC100LGP.

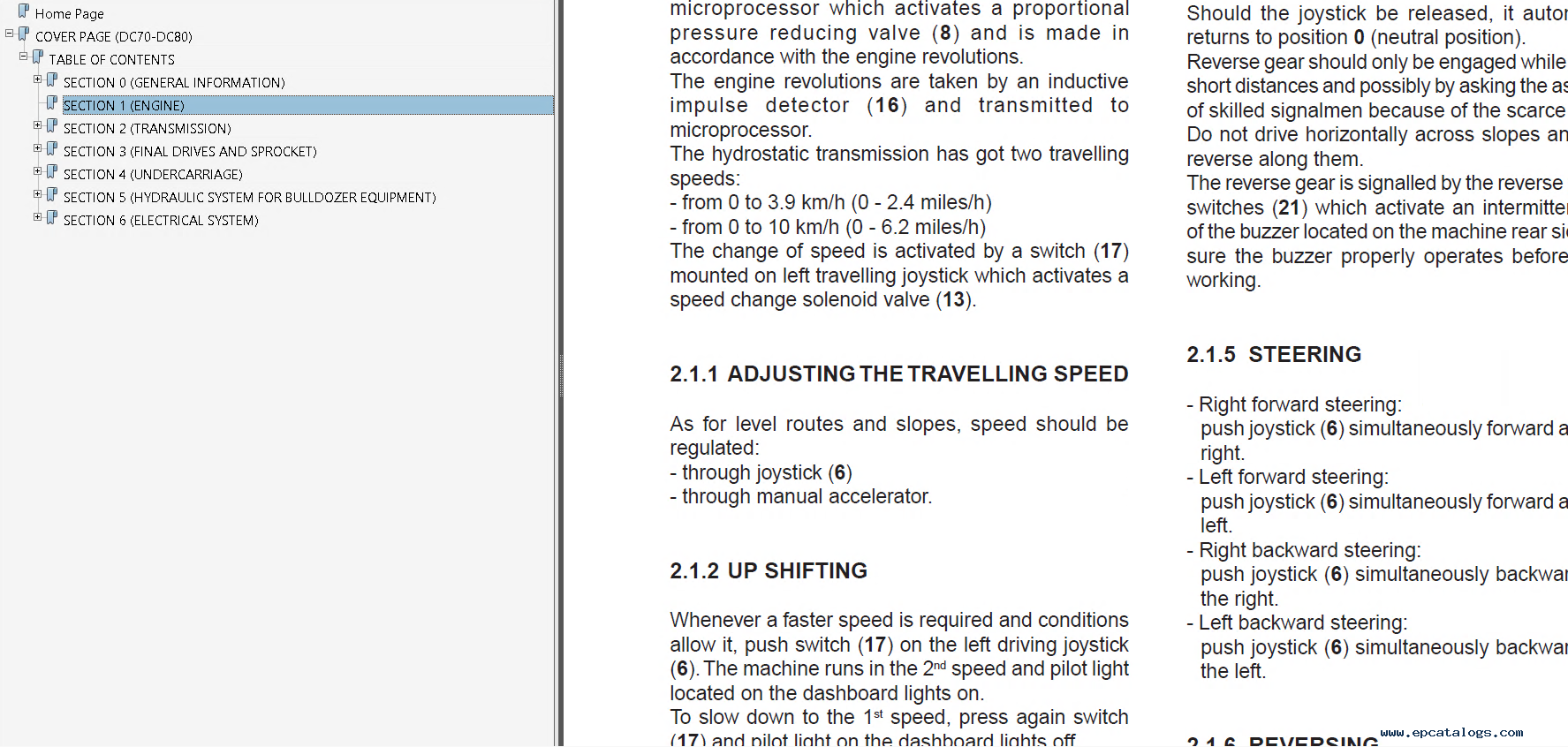

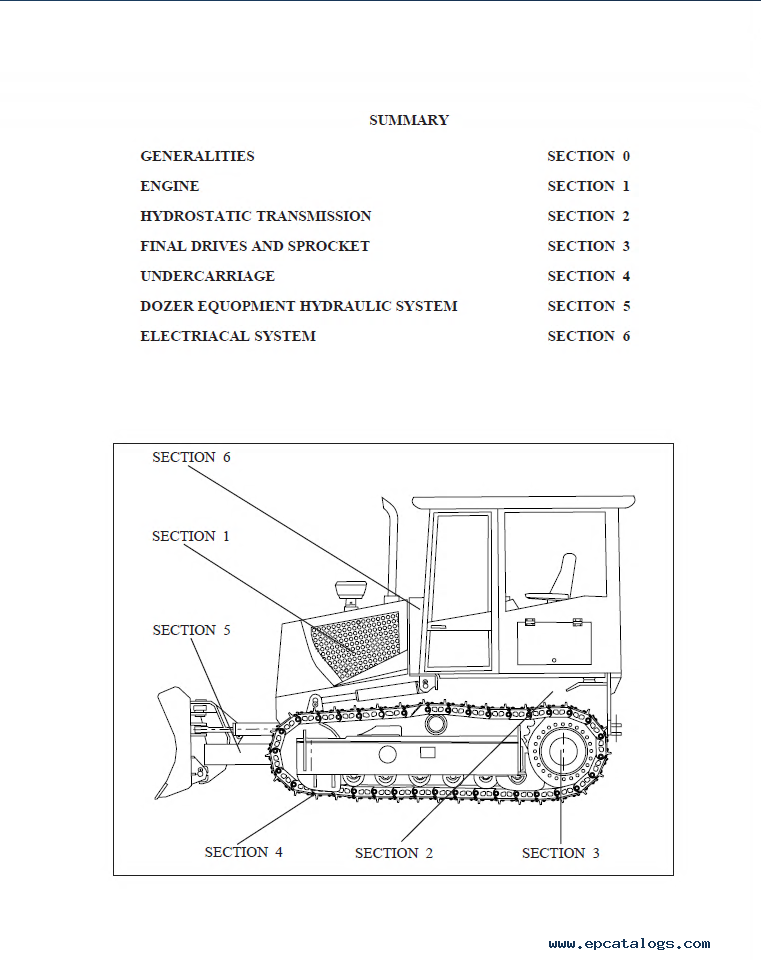

CONTENTS:

• SECTION 0 - GENERALITIES
  • SAFETY RULES
  • TECHNICAL DATA TABLES
  • GENERAL INSTRUCTIONS
  • DIAGNOSTIC CHECKS
  • UNITS OF MEASURE
  • CLASSIFICATION OF STANDARD PARTS FOR TORQUE DETERMINATION
• SECTION 1 - ENGINE
  • REFER TO THE MANUAL SUPPLIED BY THE MANUFACTURER

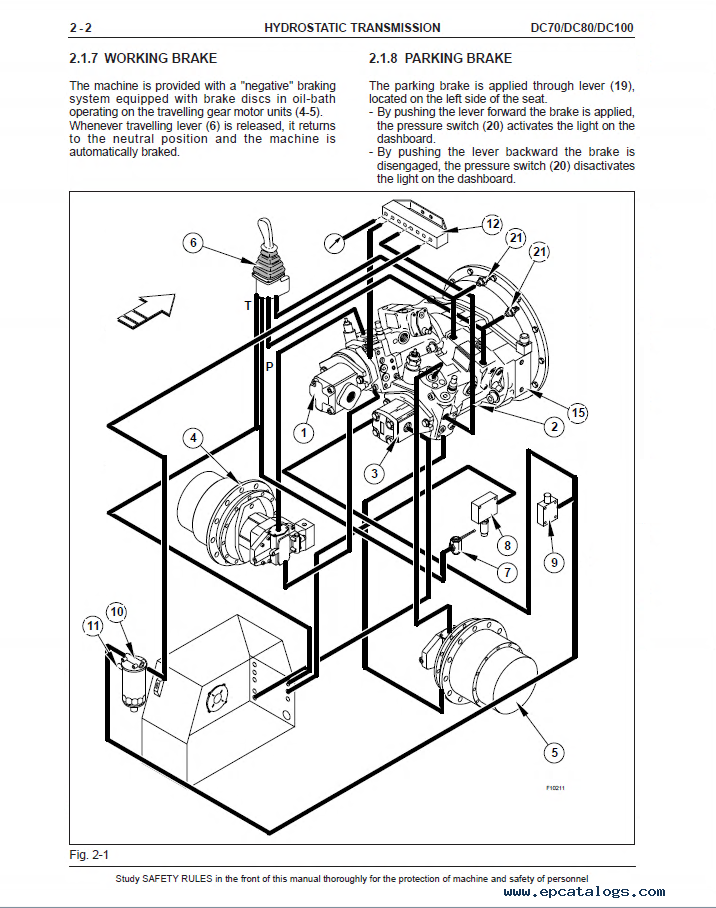

• SECTION 2 - TRANSMISSION
  • GENERAL DESCRIPTION
  • INSTALLATION
  • TROUBLESHOOTING
  • HYDRAULIC MOTOR
  • TRAVELLING HYDRAULIC PUMP
  • TRAVELLING CHARGING AND SERVONTROLS GEAR PUMP
  • LEFT CONTROL TRAVELLING JOYSTICK STD
  • PROPORTIONAL PRESSURE REDUCTION VALV
  • MAX PRESSURE VALVE FOR TRAVELLING CHARGING
  • AND SERVONCONTROLS
  • PUMP COUPLER
  • TRANSMISSION OIL FILTER
  • SPEED CHANGE SOLENOID VALVE
  • HYDRAULIC PLANT
• SECTION 3 - FINAL DRIVES AND SPROCKET
  • DESCRIPTION
  • DISASSEMBLY
  • INSPECTION OF SPROCKETS
  • GEARBOX DISASSEMBLY
  • HYDRAULIC MOTOR
  • FEATURES AND DATA
• SECTION 4 - UNDERCARRIAGE
  • GENERAL DESCRIPTION
  • TROUBLESHOOTING OF MAJOR MALFUNCTIONS

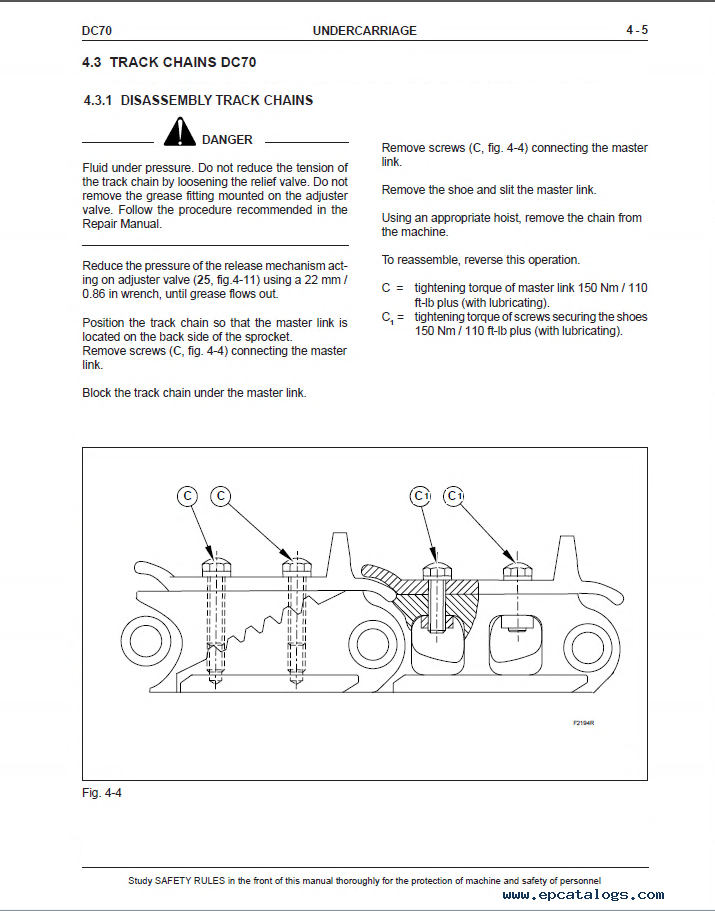

  • TRACK CHAINS
  • TRACK RELEASE AND ADJUSTER MECHANISM
  • TRACK IDLER WHEELS
  • TRACK BOTTOM ROLLERS
  • TRACK CARRIER ROLLERS
  • LUBRICATION OF ROLLERS AND TRACK IDLER WHEELS
  • SPECIFICATIONS AND DATA
• SECTION 5 - HYDRAULIC SYSTEM FOR BULLDOZER EQUIPMENT
  • DESCRIPTION AND OPERATING OF HYDRAULIC SYSTEM
  • EXHAUST SYSTEM

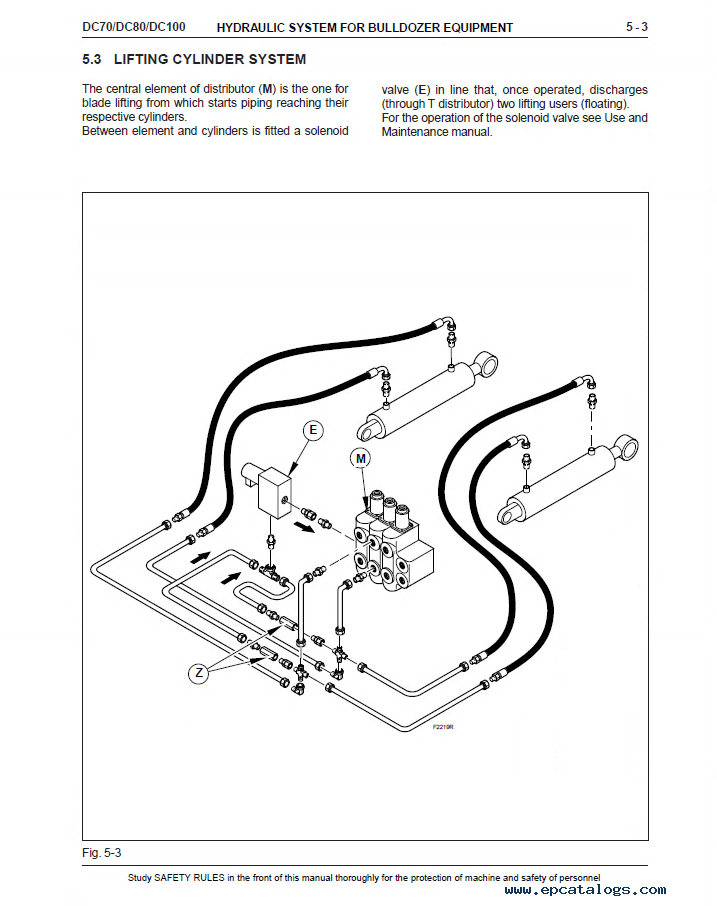

  • LIFTING CYLINDER SYSTEM
  • ANGLE CYLINDER SYSTEM
  • TILT CYLINDER SYSTEM
  • DISTRIBUTOR
  • PUMP
  • EQUIPMENT OIL FILTER
  • HYDRAULIC OIL TANK AND OIL FILTERS
  • SERVOCONTROL SYSTEM
  • SOLENOID VALVES
  • C-FRAME, BLADE AND CYLINDERS
  • RIGHT CONTROL TRAVELLING JOYSTICK STD
  • HYDRAULIC DIAGRAM
• SECTION 6 - ELECTRICAL SYSTEM
  • SAFETY RULES

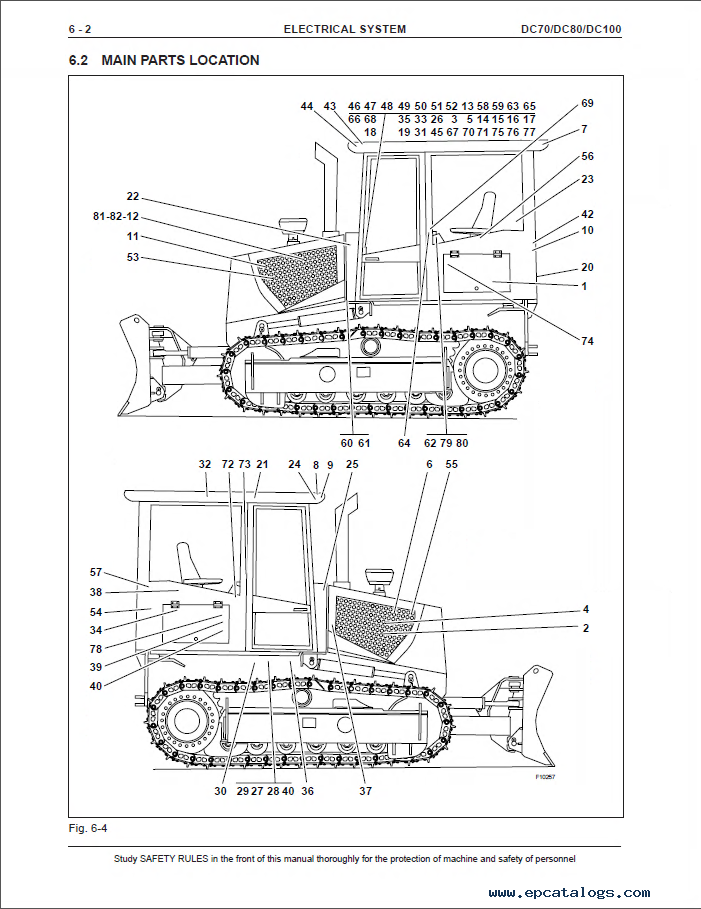

  • MAIN PARTS LOCATION
  • ELECTRICAL SYSTEM DIAGRAM
  • FUSES
  • CONTROL PANEL
  • ROTATION ANGLE SENSOR WITH NO CONTACT
  • ENGINE REVOLUTION SENSOR

This factory file provides full service information, which helps you to fix the problems and errors that can help save time searching for relevant information. This comprehensive manual is suitable for professional technicians and novice mechanics alike.

Features of the Manual
Format: PDF
Language: English
Pages: 307
Compatible with all versions of Windows, Mac, Linux, iPhone, iPad, and Android
This service manual contains technical service information, many helpful diagrams, fitting instructions, special installation instructions for dozers New Holland DC models.

FAQs
How do I download the manual?
You can buy this online manual right now. After purchase, you will receive the file, sent by email to your email address, within 1-10 minutes. Please check your spam/junk folder if you don't see it in your inbox.

Is the manual printable?
Yes, you can print out individual pages or the entire text as a whole.

Still have questions?
Feel free to contact us if you have any questions, or problems.
