Liebherr L507S, L509S, L514 Stereo Wheel Loader Service Manual PDF

This service manual provides detailed service information, special instructions for repair and maintenance, troubleshooting, and other additional information for Liebherr wheel loaders L507S, L509S, and L514 Stereo.

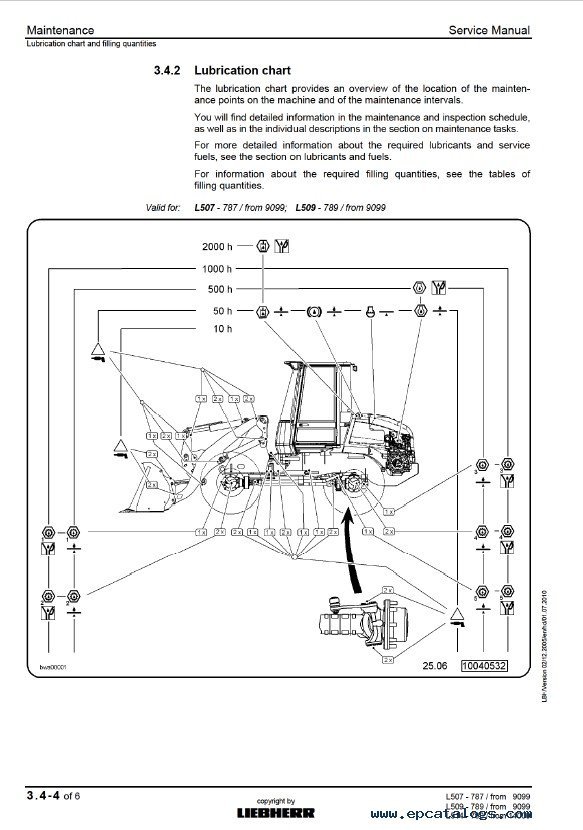

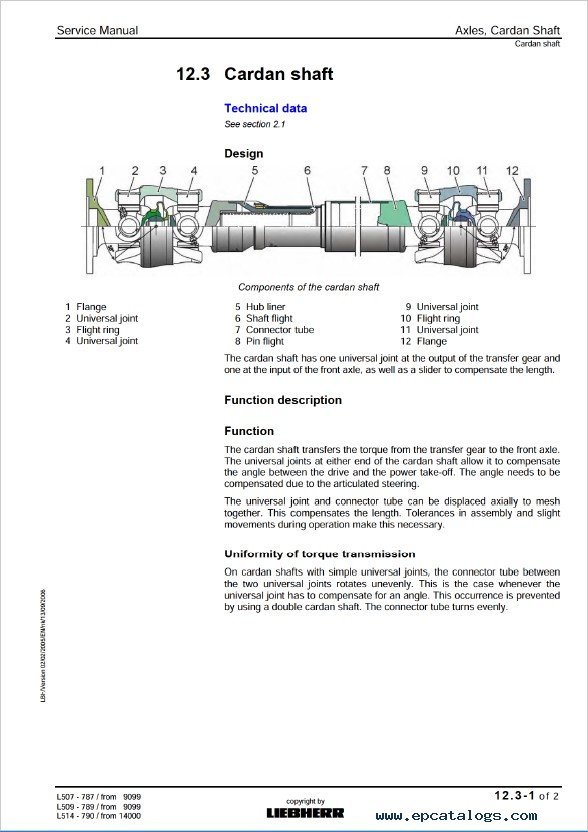

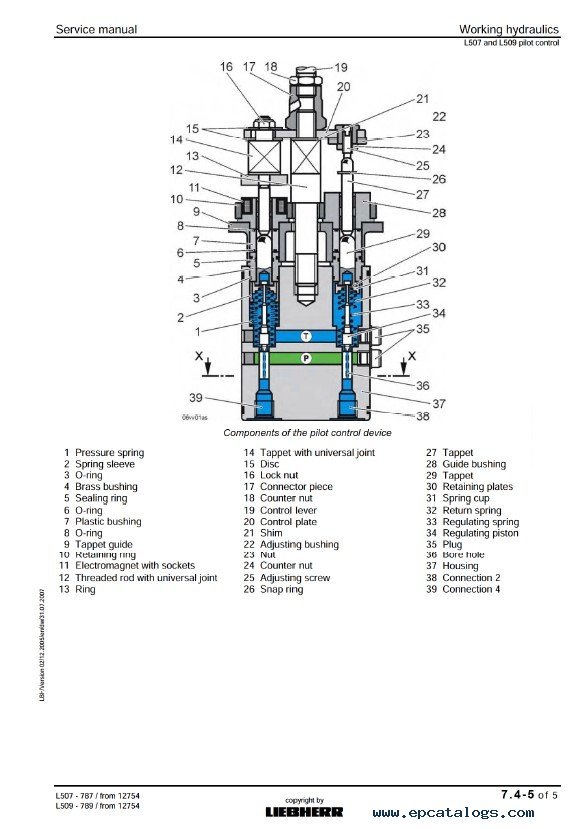

Using this manual you can find a lot of pictures (screenshots) and wiring diagrams, which show the location of the necessary parts and can be assembled or dismantled.

This service manual allows you to identify and solve problems and inaccuracies. The service manual comes in PDF format and includes 600 pages, which are printable and readable. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly.

Models covered:
L 507 S
L 509 S
L514

Serial numbers:
L 507 S - 9099
L 509 S - 9099
L514 - 14000

Contents:
General Information
Product Description
Maintenance
Diesel Engine
Cooling System
Travel Hydraulics
Working Hydraulics
Steering System
Brake System
Electrical System
Transfer Gear
Axles, Drive Shafts
Machine Frame, Ballast Weight
Central Lubrication System
Covering, Cab Access
Cab, Heating, Air-Conditioning
Lift Arm, Quick-Change Device
Attachments, Accessories
Repair Work, Troubleshooting
Options
