Liebherr L506 - L510 Stereo Wheel Loader Service Manual PDF

Service manual includes repair and service information, technical service instructions, installation instructions, troubleshoot information for Liebherr wheel loaders L506, L507, L508, L509, L510 Stereo.
Service manual helps to identify existing and potential problems, to carry out maintenance and repair problem areas and troubleshooting Liebherr wheel loaders.
This service manual has been written for those job it is to make sure that the machines remain operational on a daily basis.
Service manual comes in PDF and includes 426 pages, which are printable. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

Serial number: 9099

Models covered:
L 506,
L 507,
L 508,
L 509,
L 510.

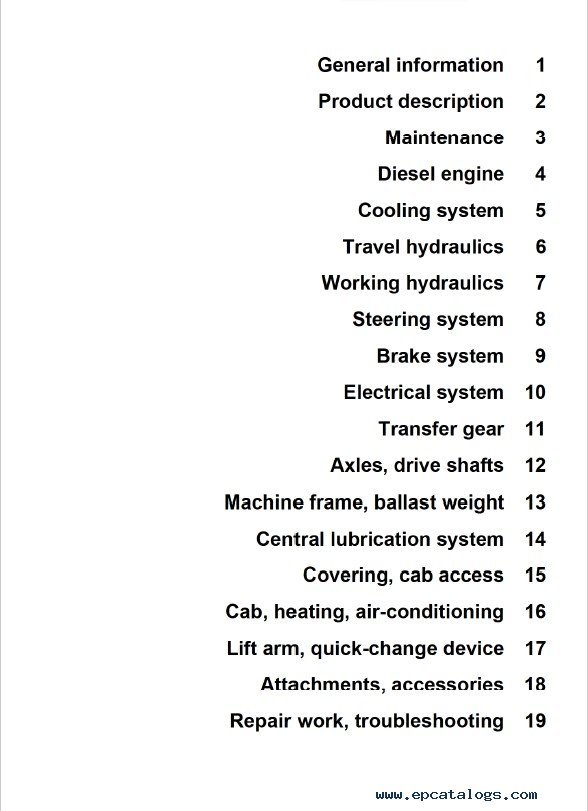

Contents:
General Information

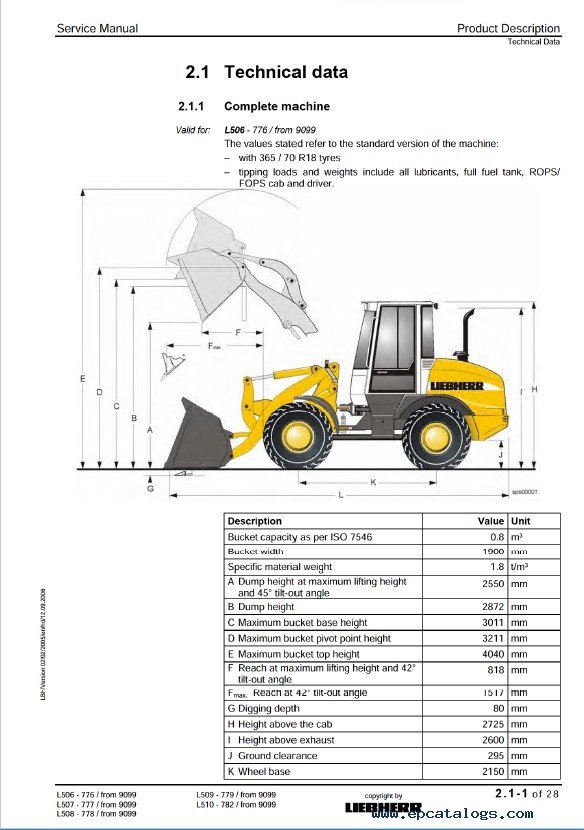

Product Description
Maintenance
Diesel Engine
Cooling System
Travel Hydraulics
Working Hydraulics
Steering System

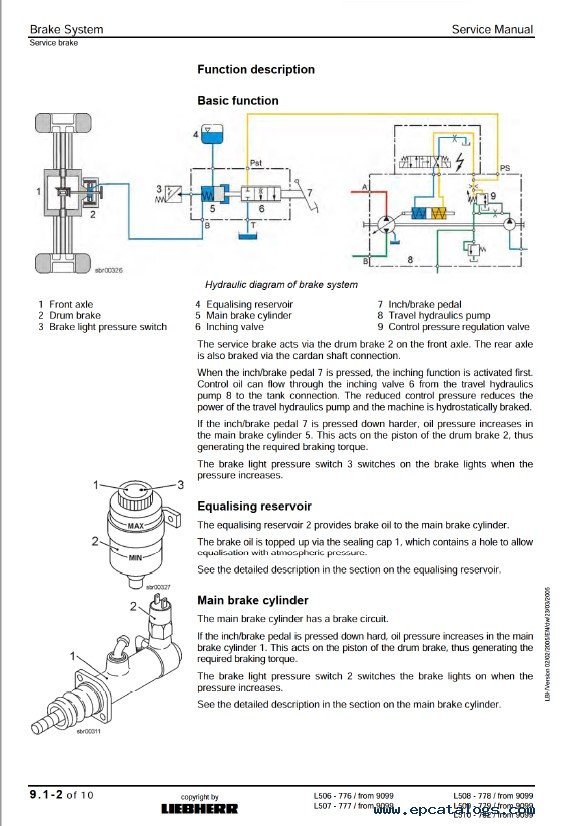

Brake System
Electrical System
Transfer Gear
Axles, Drive Shafts
Machine Frame, Ballast Weight
Central Lubrication System

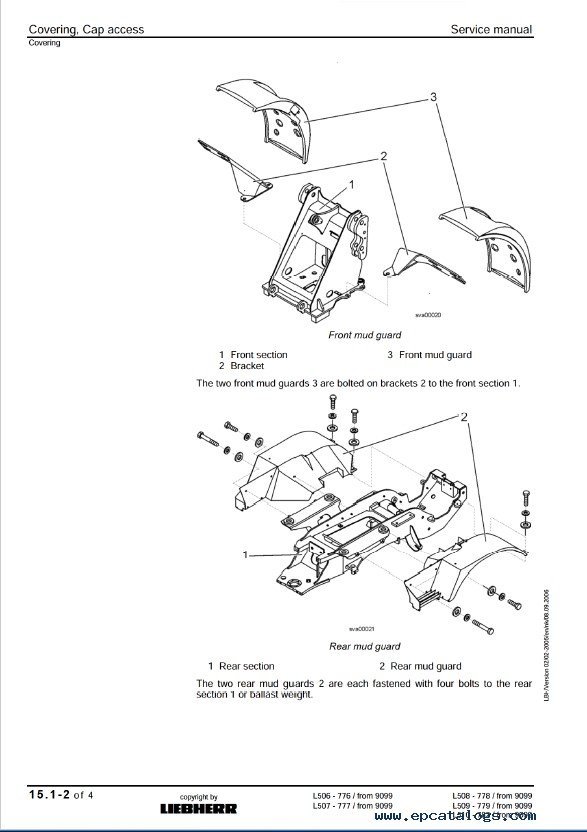

Covering, Cab Access
Cab, Heating, Air-Conditioning
Lift Arm, Quick-Change Device
Attachments, Accessories
Repair Work, Troubleshooting
