Komatsu PC100/100L-3 & PC120-3 & PC150HD/150NHD-3 Hydraulic Excavator Shop Manual PDF

[10/2008]
repair manual Komatsu PC100/100L-3 & PC120-3 & PC150HD/150NHD-3 Hydraulic Excavator Shop Manual PDF
Type of catalogue: repair manual
Make: Komatsu
Region: WorldWide
Inclusive
languages:		 English
Amount of
disks:		 1 CD, PDF file, 629 pages
Availibility Instant Download
OS: Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit
Price, USD: 75

This shop manual has been prepared as an aid to improve the quality of repairs by givingthe serviceman an accurate understanding of the product and by showing him the correct way to perform repairs and make judgements.
This shop manual mainly contains the necessary technical information for operations performed in a service workshop.
This shop manual is a scanned PDF file. To work with this manual you need to install the application Adobe PDF Reader.

Models and Serial Numbers:
PC100-3 - 18001 and up
PC100L-3 - 12001 and up
PC120-3 - 18001 and up
PC120-3K - K10001 and up
PC150HD-3K - K10001 and up
PC150NHD-3K - K10001 and up

Contents:

  • 01 General
  • 10 Engine
    • Structure and Function
    • Testing and Adjusting
    • Disassembly and Assembly
  • 20 Power Train
    • Structure and Function
    • Testing and Adjusting (Refer "62 Testing and Adjusting")
    • Disassembly and Assembly
    • Maintenance Standard
  • 30 Undercarriage
    • Structure and Function
    • Disassembly and Assembly
    • Maintenance Standard
  • 60 Hydraulic System
    • Structure and Function
    • Testing and Adjusting
    • Disassembly and Assembly
    • Maintenance Standard
  • 70 Work Equipment
    • Disassembly and Assembly
    • Maintenance Standard
  • 80 Electrical System
    • Structure and Function
    • Testing and Adjusting
  • 90 Others
    • Structure and Function

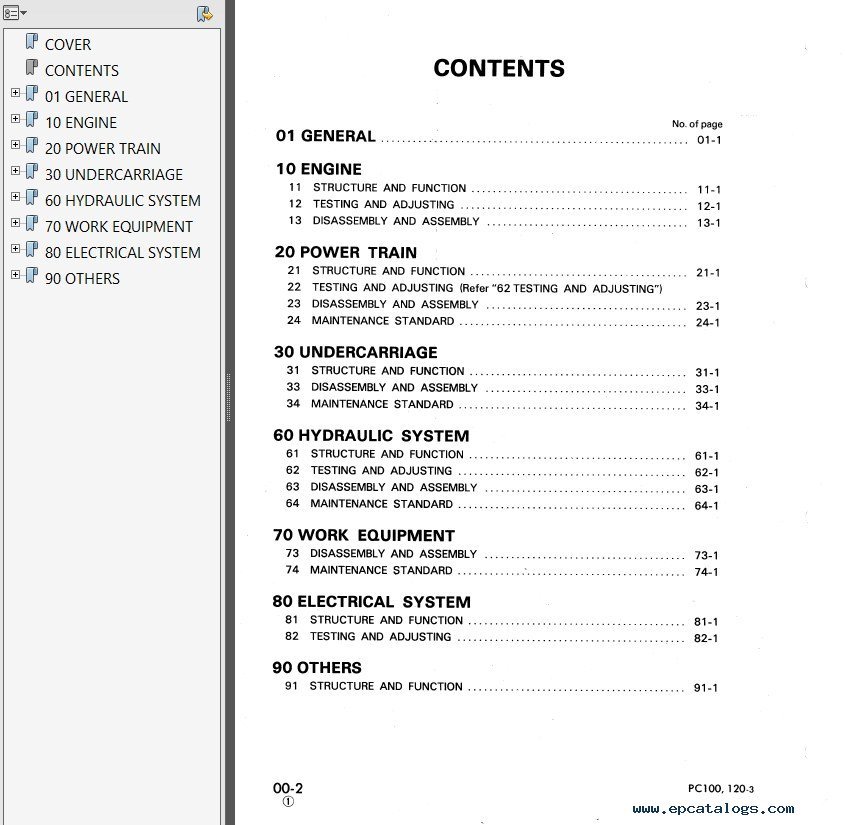

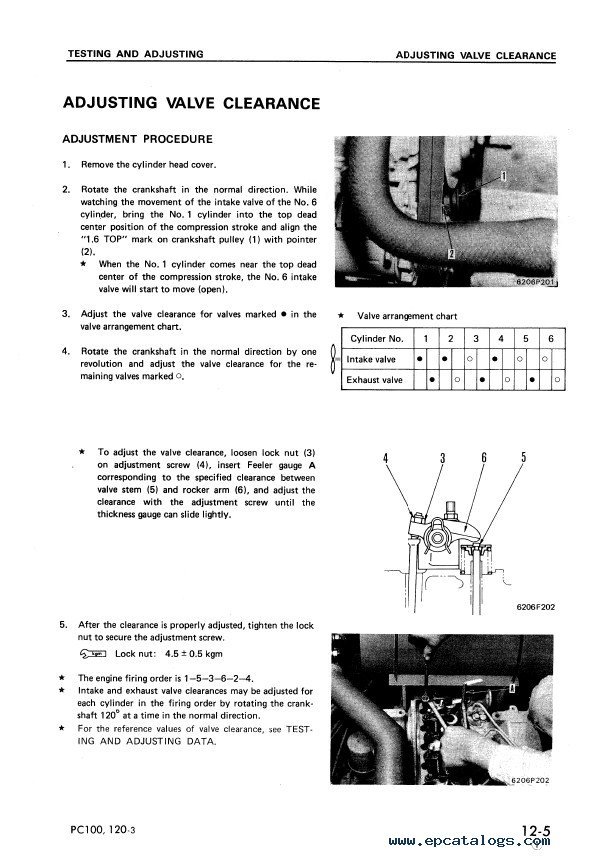

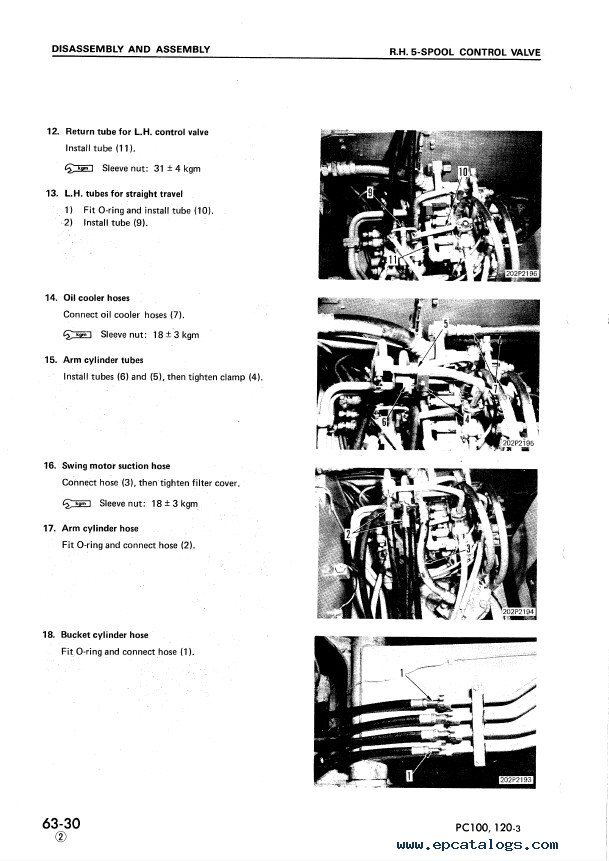

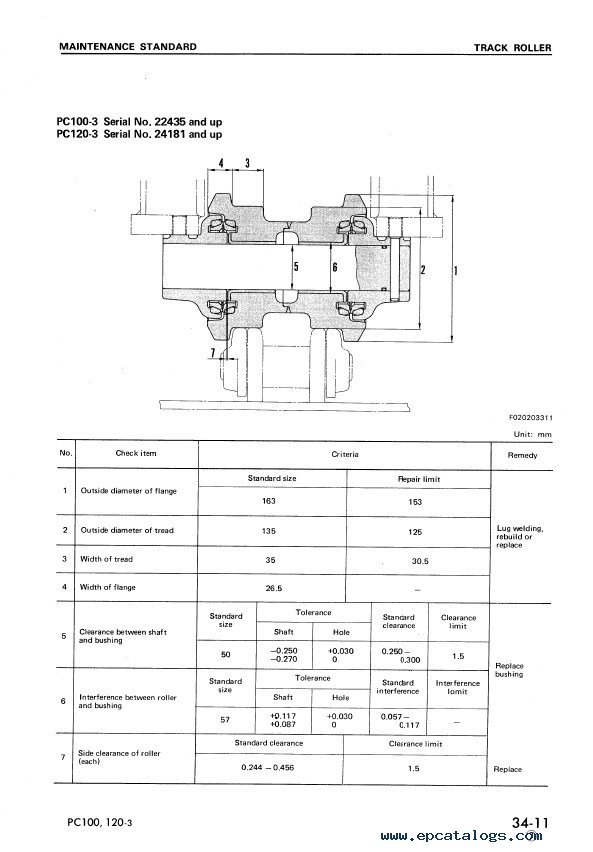

Screenshots for Komatsu PC100/100L-3 & PC120-3 & PC150HD/150NHD-3 Hydraulic Excavator Shop Manual PDF:
