Kobelco SK80MSR-1E Hydraulic Excavator Shop Manual PDF

Shop manual provides detailed service information, repair information, service manuals, instructions for use and installation, designed to serve the hydraulic excavators Kobelco SK80MSR-1E.
Shop manual comes in PDF format, all pages are printable. To view the information you want the program installed Adobe Reader.
This shop manual is a system of care in operation and maintenance of hydraulic excavators Kobelco, which allows to detect and eliminate problems encountered and inaccuracies.

Applicable machines:
Kobelco LF02-01001 and UP
Kobelco LF03-01280 and UP

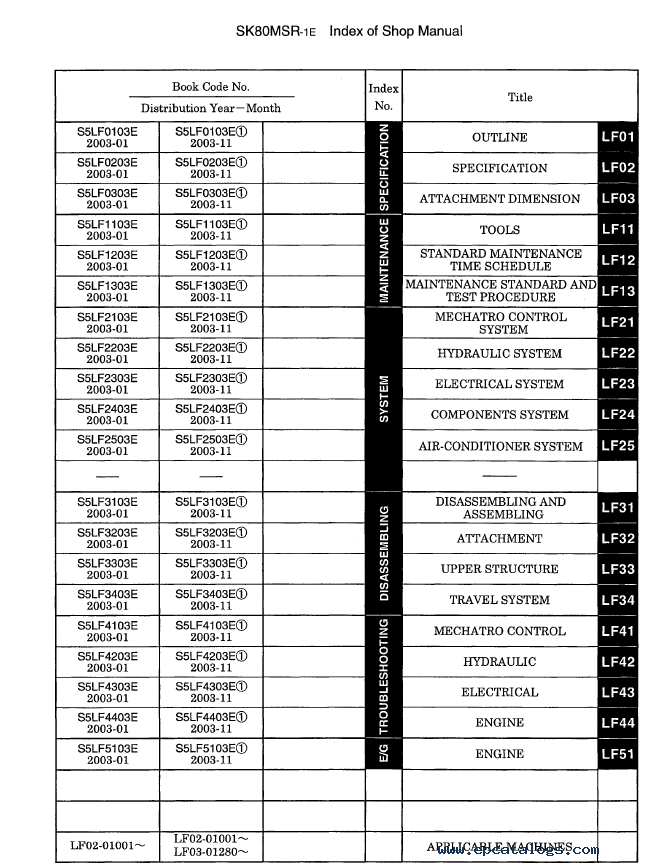

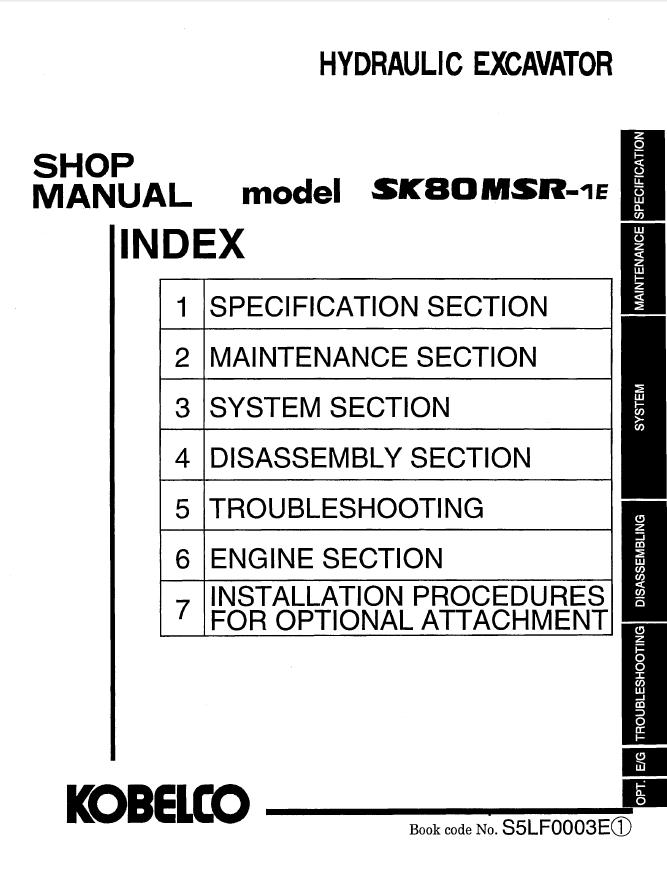

Shop manual covers:
1. Specification Section
Outline
Specification
Attachment Dimension
2. Maintenance Section
Tools
Standard Maintenance Time Schedule
Maintenance Standard And Test Procedure
3. System Section
Mechatro Control System
Hydraulic System
Electrical System
Components System
Air-Conditioner System
4. Disassembly Section
Disassembling And Assembling
Attachment
Upper Swing Body
Travel Frame
5. Troubleshooting
Mechatro Control
Hydraulic
Electrical
Engine
6. Engine Section
7. Installation Procedures for Optional Attachment
