Kobelco SK235SR-1E SK235SRLC-1E SK235SRNLC-1E Hydraulic Excavator Shop Manual PDF

For maintenance and repair of hydraulic excavators Kobelco at the site presented this shop manual, which helps you to perform complete troubleshoot, repair and maintenance of hydraulic crawler excavators Kobelco:
SK235SR-1E,
SK235SRLC-1E,
SK235SRNLC-1E.
Shop manual consists of an integrated service information includes maintenance manuals, instructions for installation and adjustment, repair manuals, calibration data, etc.
This instruction will help you to troubleshoot problem areas, and as a result troubleshoot computer systems, the elimination of hardware conflicts.
This shop manual has a friendly and easy to use interface that supports English. Manual comes in PDF format. All pages are printable.
PDF manual is a detailed source of important information for anyone with a special equipment which is itself willing to improve the maintenance and repair of hydraulic excavators Kobelco.

Also, we have Parts Manual for these models Kobelco hydraulic excavators:

Kobelco SK235SR-1E SK235SRLC-1E SK235SRNLC-1E Hydraulic Excavator Parts Manual PDF

Applicable:

YF02-01201 and UP
YU02-00501 and UP
YF03-01300 and UP
YU03-00648 and UP

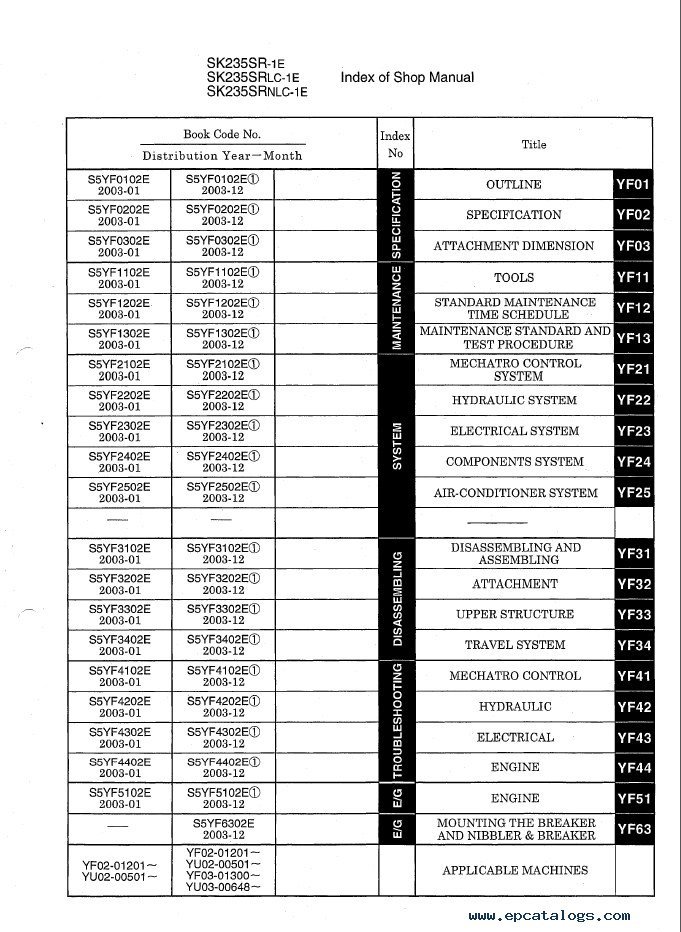

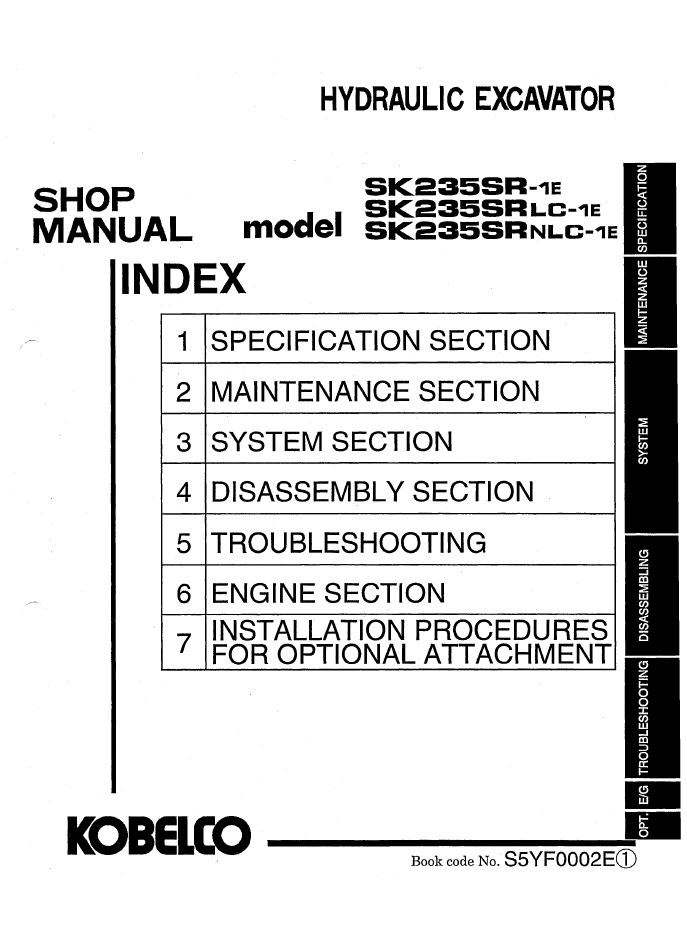

INDEX:
1 - SPECIFICATION SECTION
OUTLINE
SPECIFICATION
ATTACHMENT DIMENSION

2 - MAINTENANCE SECTION
TOOLS
STARNDARD MAINTENANCE TIME SCHEDULE
MAINTENANCE STANDARD AND TEST PROCEDURE

3 - SYSTEM SECTION
MECHATRO CONTROL SYSTEM
HYDRAULIC SYSTEM
ELECTRICAL SYSTEM
COMPONENTS SYSTEM
AIR-CONDITIONER SYSTEM

4 - DISASSEMBLY SECTION
DISASSEMBLING AND ASSEMBLING
ATTACHMENT
UPPER STRUCTURE
TRAVEL SYSTEM

5 - TROUBLESHOOTING
MECHATRO CONTROL
HYDRAULIC
ELECTRICAL
ENGINE

6 - ENGINE SECTION
ENGINE

7 - INSTALLATION PROCEDURES FOR OPTIONAL ATTACHMENT
MOUNTING THE BREAKER AND NIBBLER & BREAKER
