Kobelco SK230(LC)-6E SK250(LC)-6E SK250NLC-6E Hydraulic Excavator Shop Manual PDF

Shop manual includes repair and maintenance manuals for hydraulic excavators Kobelco SK230-6E, SK230LC-6E, SK250-6E, SK250LC-6E, SK250NLC-6E.
This shop manual contains step by step instruction and customer service, diagrams, repair manuals.
Electronic manual has a very comfortable and pleasant interface, it is designed to run on a PC. Shop manual comes in PDF format, all pages are printable. To view the information you need to install any PDF Reader.
This manual is a system of assistance in the operation and repair of excavators Kobelco.

Models covered:
SK230-6E,
SK230LC-6E,
SK250-6E,
SK250LC-6E,
SK250NLC-6E.

Applicable machines:
LQ09-04801 & Up
LL09-03501 & Up
LQ10-04915 & Up
LL10-03666 & Up

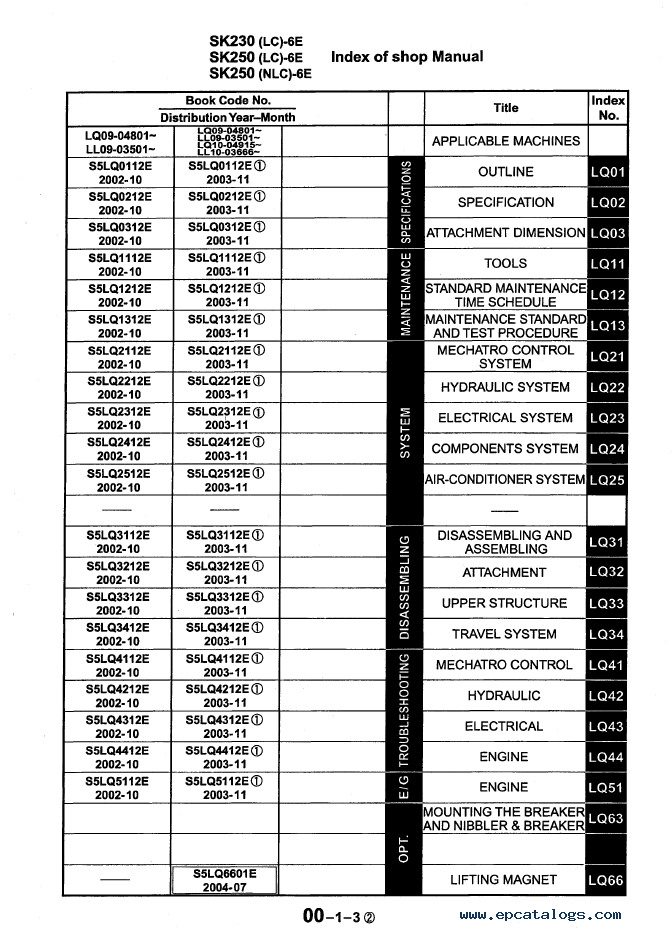

Shop manual:
* Specifications Section
Outline
Specification
Attachment Dimension

* Maintenance Section
Tools
Standard Maintenance Time Schedule
Maintenance Standard And Test Procedure

* System Section

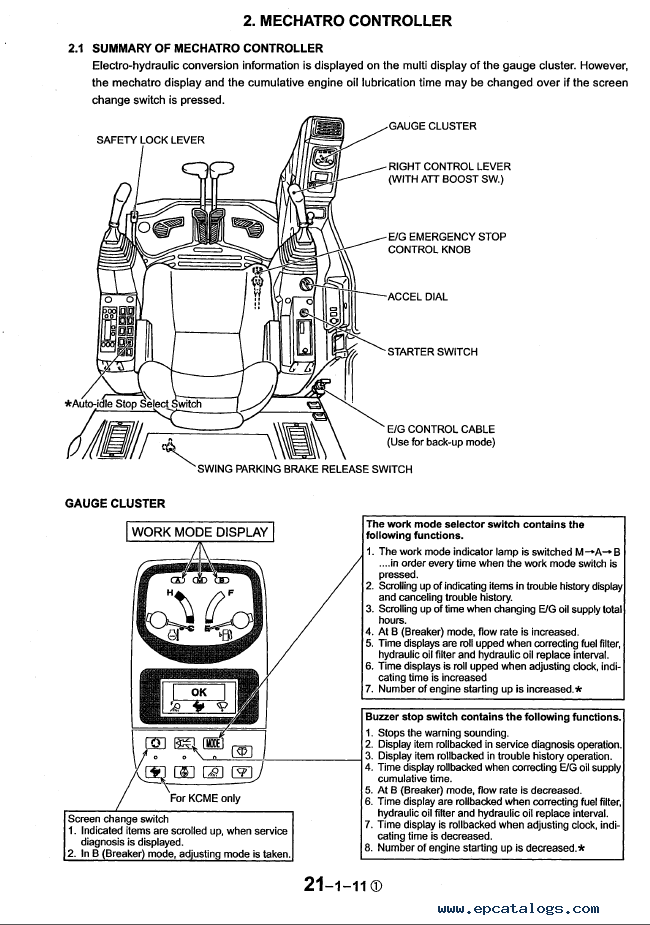

Mechatro Control System

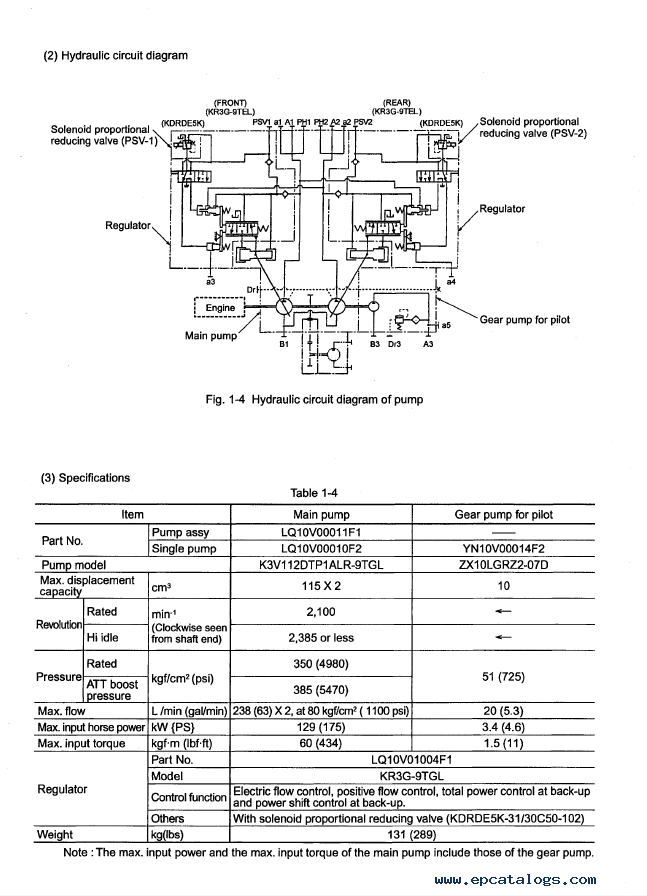

Hydraulic System
Electrical System
Components System
Air-Conditioner System

* Disassembling Section
Disassembling And Assembling
Attachment
Upper Structure
Travel System

* Troubleshooting
Mechatro Control
Hydraulic
Electrical
Engine

* Engine

* Opt.
Mounting The Breaker And Nibbler & Breaker
Lifting Magnet
