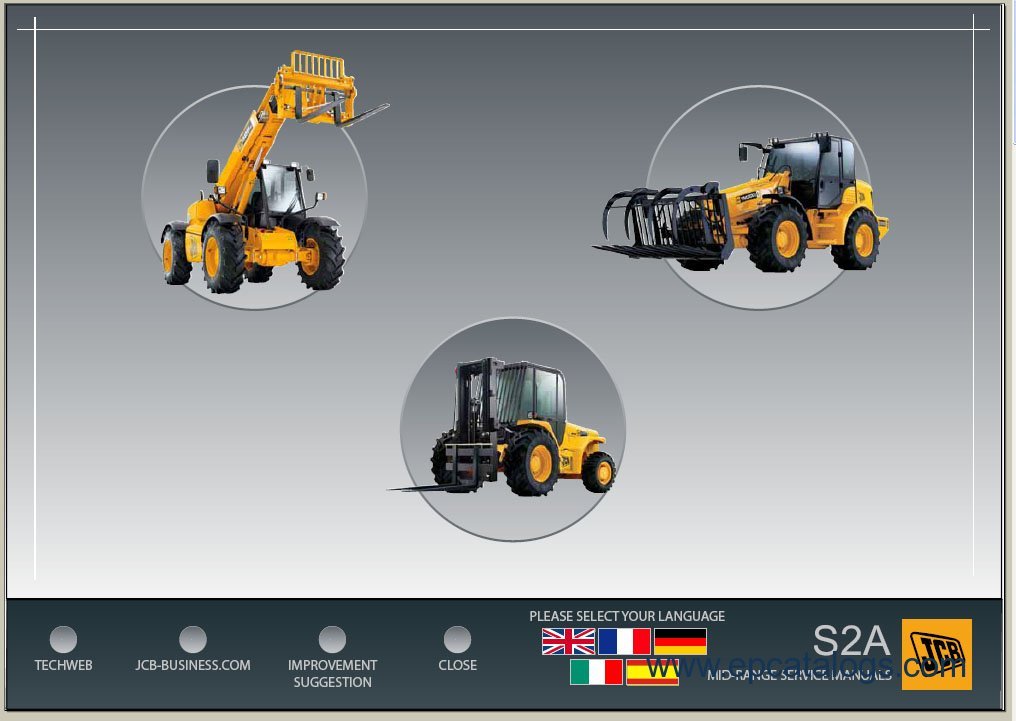

JCB Service Manuals S2A

JCB Service Manuals S2A includes repair and maintenance information of equipment JCB. Electronic catalog provides detailed information for hardware JCB: Loadall, TM200, TM270, TM300, TM310, Rough Terrain Fork Lift.
Service manuals contain full dealer repair and service information, including repair documentation for Isuzu, Deutz, Cummins, Perkins engines.
Service manuals contain clear information about the products JCB, and assists to identify existing and potential problems, to carry out maintenance and repair problem areas and equipment malfunctions JCB.

Note: User Account Control must be disabled.

JCB Service Manual S2A covers:
Loadall
9803/3300 520 ALL: 270587 onwards
9803/3350 520-2, 520-4 ALL
520M-2, 520M-4 ALL
525-2, 525-4 ALL
525B-2, 525B-4 ALL
530-3, 530-4 ALL
530B-2, 530B-4 ALL
540B-2, 540B-4 ALL
540BM-2, 540BM-4 ALL
9803/3352 525B-HL (Supplement: Servo Hydraulics) ALL: 273492 Onwards
530B-HL (Supplement: Servo Hydraulics) ALL: 581641 Onwards
9803/3600 525-58 (Includes Basic Servo Option) ALL: 561001 Onwards
525-67 (Includes Basic Servo Option) ALL: 561001 Onwards
527-58 ALL: 572775 Onwards
527-67 ALL: 572775 Onwards
530-67 ALL: 571001 Onwards
530-95 ALL: 564980 Onwards
530-110 (Includes PlaceAce & Servo Options) ALL: 563359 Onwards
530-120 (Includes PlaceAce & Servo Options) ALL: 562601 Onwards
535-67 ALL: 572775 Onwards
537-120 ALL: 572900 Onwards
537-130 ALL: 572900 Onwards
9803/3600U
(N.America)
505-19 (Includes Basic Servo Option) ALL: 561001 - 579365
505-22 (Includes Basic Servo Option) ALL: 561001 - 579365
506-36 (Includes Servo Options) ALL: 563359 - 579999
506B ALL: 570000 - 579766
508-40 (Includes PlaceAce & Servo Options) ALL: 562601 - 579365
510-40 ALL: 564542 - 579365
9803/3610 520-55, ALL: 277001 - 280299
526, 526S 279289 - 280299
526-55 ALL: 277468 - 279288
9803/3610U
(N.America)
504B ALL: 277001 Onwards
526 ALL: 279289 Onwards
9803/3630 530-70 ALL: 768740 - 1185999
1232500 - 1232999
533-105 786756 - 1185999
535-60 ALL: 1064599 - 1185999
535-95 778295 - 1185999
540-70 ALL: 771065 - 1185999
1232500 -1232999
532-120 ALL: 796000 - 1185999
535-125 796102 - 1185999
535-140 796102 - 1185999
537-135, 550 ALL: 796102 - 1185999
540-140 796102 - 1185999
1232517 - 1232526
540-170, 5508 796102 - 1185999
9803/3640U
(N.America)
506B, 506C, 506 (HL), 508C ALL
9803/3641 Supplement: 532-120H, 527-135H ALL
9803/3650 528-70 796000 -1181999
528S 796102 - 1181999
9803/3665 Supplement: Load Control ALL
9803/3700 Supplement: Man Basket (LK1) ALL
9803/3710 526-55 (JCB 444 Engine) 1182000 Onwards
526S (JCB 444 Engine) 1182000 Onwards
528-70 (JCB 444 Engine) 1182000 Onwards
528S (JCB 444 Engine) 1182000 Onwards
9803/3730 531-70 (JCB 444 Engine) 1186000 Onwards
533-105 (JCB 444 Engine) 1186000 Onwards
535-95 (JCB 444 Engine) 1186000 Onwards
535-125 (JCB 444 Engine) 1186000 Onwards
535-140 (JCB 444 Engine) 1186000 Onwards
536-60 (JCB 444 Engine) 1186000 Onwards
540-140 (JCB 444 Engine) 1186000 Onwards
540-170 (JCB 444 Engine) 1186000 Onwards
541-70 (JCB 444 Engine) 1186000 Onwards
550-140 (JCB 444 Engine) 1186000 Onwards
550-170 (JCB 444 Engine) 1186000 Onwards
9803/3620 Compact: 520-50, 520 (N. Am) ALL: 754001 Onwards
Compact: 525-50 ALL: 789308 Onwards
Compact: 525-50S ALL: 1037581 Onwards
9803/3690 Compact: 515-40, 520-40 ALL: 1012000 Onwards
Compact: 524-50, 527-55 ALL: 1068000 Onwards
9803/3760 531-70 (JCB 444 Engine) Tier lll Engine 1508000 Onwards
533-105 (JCB 444 Engine) Tier lll Engine 1508000 Onwards
535-95 (JCB 444 Engine) Tier lll Engine 1508000 Onwards
536-60 (JCB 444 Engine) Tier lll Engine 1508000 Onwards
536-70 (JCB 444 Engine) Tier lll Engine 1508000 Onwards
526-56 (JCB 444 Engine) Tier lll Engine 1508000 Onwards
541-70 (JCB 444 Engine) Tier lll Engine 1508000 Onwards
9803/3740 506-36 1402000 - 1404999
507-42 1402000 - 1404999
509-42 1402000 - 1404999
510-56 1402000 - 1404999
9803/3750 540-170 1186000 Onwards
550-140 1186000 Onwards
540-140 1186000 Onwards
550-170 1186000 Onwards
535-125 HiViz 1186000 Onwards
535-140 HiViz 1186000 Onwards
9803/9900 515-40 1627500 - 1628499

TM200 TM270 TM300 TM310
9803/4225 TM200 0633777 Onwards
TM270 0787000 Onwards
TM300 1017000 Onwards
9803/9520 TM310 M1314700 Onwards

RTFL Rough Terrain Fork Lift
9803/5100 926 602000 Onwards
930 607700 Onwards
940 660300 Onwards
