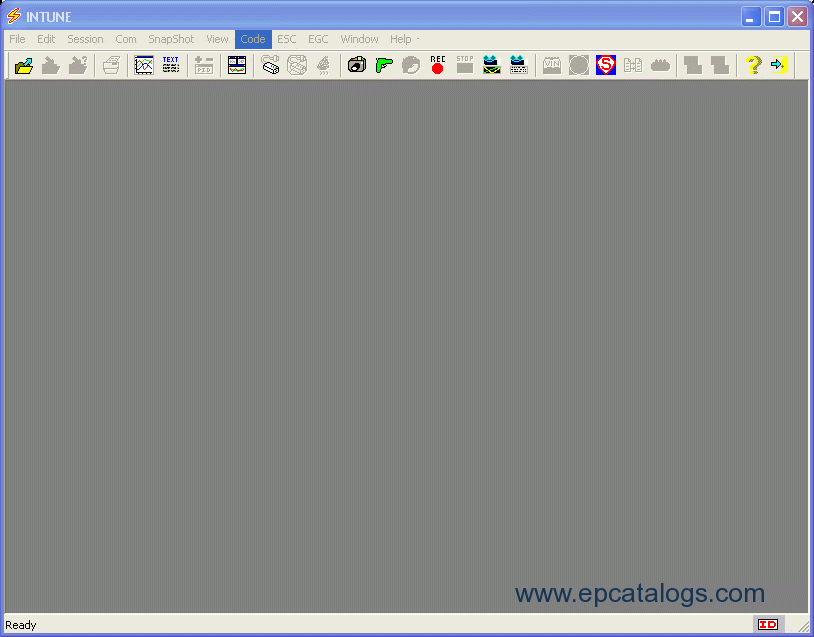

International INTUNE

International INTUNE is used to assist in diagnosing International Next Generation Vehicle (NGV) multiplexed electronics or electrical problems. INTUNE is designed specifically to work with the new Electronic System Controller (ESC) and the Electronic Gauge Cluster (EGC) modules. The on-board electronics are used to control and display the multifaceted purposes of these Next Generation Vehicles. INTUNE collecting information using the high-speed J1939 data bus.

INTUNE then does any combination of the following according to the user's preferences:

Report parameters (PIDs) in graphical format.

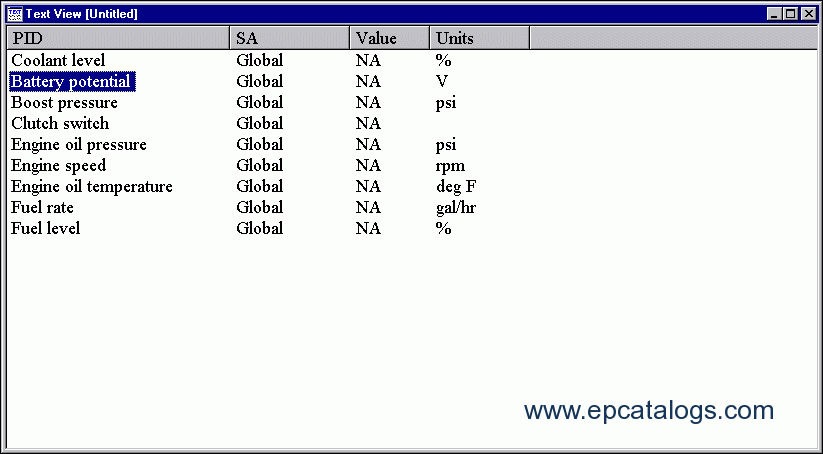

Report parameters (PIDs) in textual format.
Take a snap shot of parameters (PIDs) for later study or comparison.
Display trouble codes and appropriate diagrams utilizing help.
Replay of recorded snap shot data.

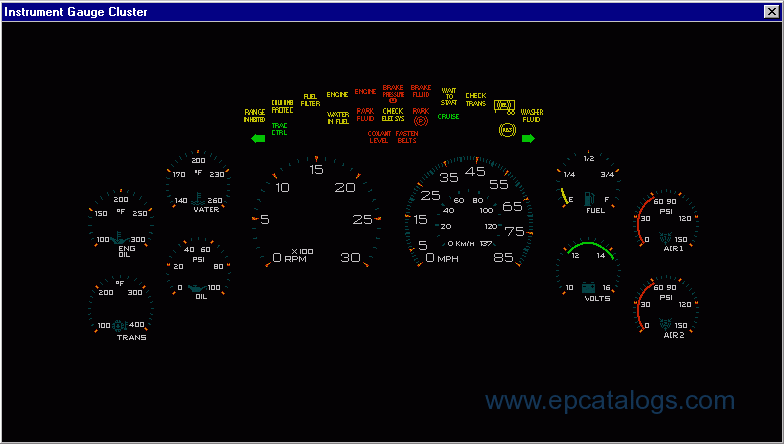

Electronic Gauge Cluster Diagnostics

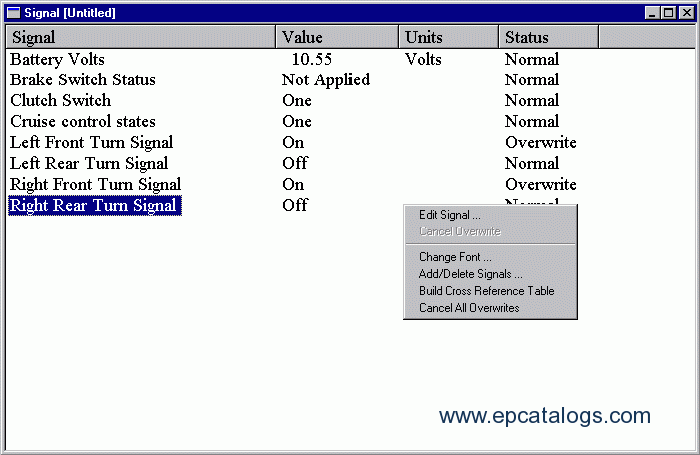

Monitor ESC Signals

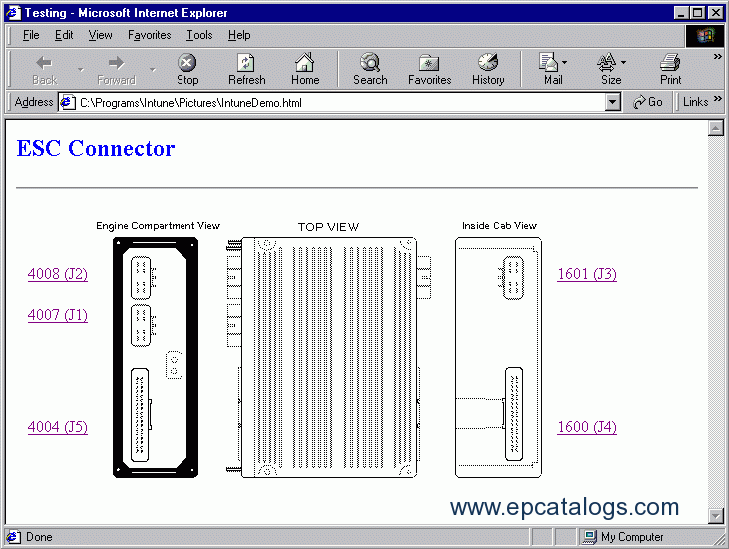

Determine the ESC I/O Pin assignment.
To use INTUNE one must connect the computer to the J1939 data bus via the interface cable.
