Fiat Kobelco W110-W130 / W130PL Wheel Loader Service Manual PDF

Service manual contains repair and service information, technical service instructions, special installation instructions, technical specifications, designed for Fiat Kobelco Wheel Loaders W110-W130 / W130PL.
This service manual allows to identify and resolve problems and inaccuracies.
This manual comes in PDF format. For work with the manual, you need to install the application Adobe PDF Reader. If necessary, you can print the entire document or selected partitions.

Models covered:
W110,
W130,
W130PL.

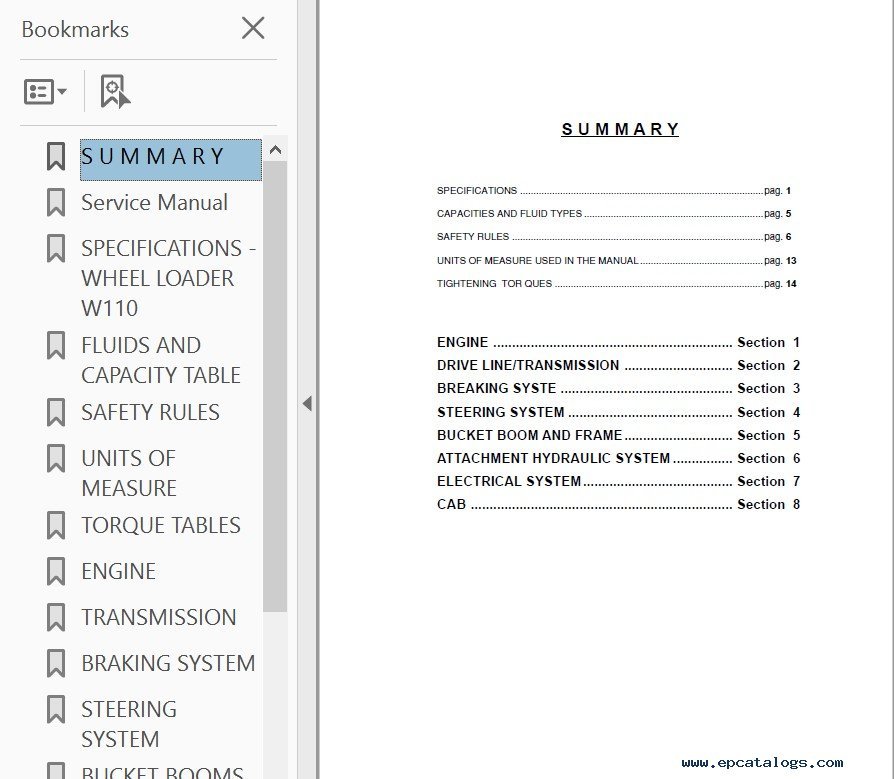

S U M M A R Y:

• SECTION 1 - ENGINE
  • 1.1. GENERAL DESCRIPTION
  • 1.2. GENERAL SPECIFICATIONS
  • 1.3. DATA - MOUNTING CLEARANCES
  • 1.4. INJECTION PUMP SETTING DATA
  • 1.5. OUTER VIEWS
  • 1.6. ENGINE SUPPORTS
  • 1.7. MAIN TIGHTENING TORQUES AND PRESSURE PICK-UP POINTS
  • 1.8. LUBRICATION SYSTEM
  • 1.9. COOLING SYSTEM
  • 1.10. FUEL FEEDING
  • 1.11. AIR INTAKE AND EXHAUST SYSTEM
  • 1.12. ELECTRICAL SYSTEM
• SECTION 2 - DRIVE LINE/TRANSMISSION
  • 2.1. GENERAL DESCRIPTION
  • 2.2. TORQUE CONVERTER - TRANSMISSION
  • 2.3. TORQUE CONVERTER
  • 2.4. TRANSMISSION - TORQUE CONVERTER PUMP
  • 2.5. TRANSMISSION
  • 2.6. DISASSEMBLY/ REASSEMBLY OF TRANSMISSION
  • 2.7. OIL CIRCUIT
  • 2.8. PROP SHAFTS
  • 2.9. FRONT AND REAR AXLES
  • 2.10. WHEELS
• SECTION 3 - BREAKING SYSTEM
  • 3.1. GENERAL DESCRIPTION
  • 3.2. OPERATION
  • 3.3. DISC BRAKE
  • 3.4. BRAKE PEDAL VALVE
  • 3.5. PARKING BRAKE CONTROL VALVE
  • 3.6. PARKING BRAKE
  • 3.7. OTHER COMPONENTS
  • 3.8. BRAKE PEDAL VALVE HYDRAULIC CONNECTIONS

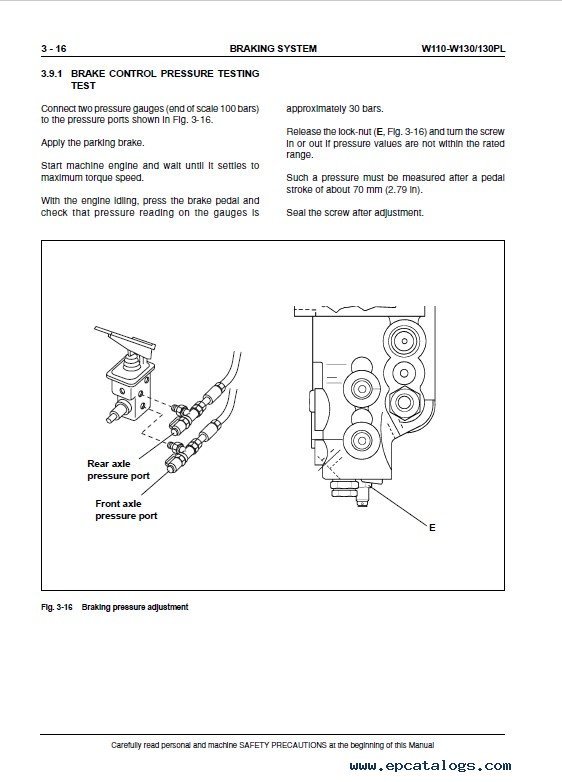

  • 3.9. DIAGNOSTICS AND TESTING
• SECTION 4 - STEERING SYSTEM
  • 4.1. GENERAL DESCRIPTION
  • 4.2. PRINCIPLES OF OPERATION OF MAIN PRIORITY VALVE
  • 4.3. STEERING VALVE (ORBITROL)
• SECTION 5 - BUCKET BOOM AND FRAME
  • 5.1. LOAD HANDLING SYSTEM
  • 5.2. BOOMS, BELLCRANK, AND BUCKET
  • 5.3. FRAME PIVOT PINS
  • 5.4. BUCKET ROLL
• SECTION 6 - EQUIPMENT HYDRAULIC SYSTEM
  • 6.1. GENERAL DESCRIPTION
  • 6.2. OIL CIRCUIT
  • 6.3. HYDRAULIC SYSTEM PUMP
  • 6.4. EQUIPMENT CONTROL VALVE (mechanical)
  • 6.5. CONTROL VALVE CONTROLS
  • 6.6. HYDRAULIC OIL RESERVOIR
  • 6.7. CYLINDERS
  • 6.8. L.T.S. ANTI-PITCH SYSTEM (Variant)
  • 6.9. SUPPLEMENTARY HYDRAULIC FUNCTION (Variant)
• SECTION 7 - ELECTRICAL SYSTEM
  • SAFETY RULES
  • 7.1 GENERAL LAY-OUT OF ELECTRICAL SYSTEM
  • 7.2 LOGIC BOARD
  • 7.3 CONNECTORS
  • 7.4 CAB INSTRUMENT CLUSTER
  • 7.5 SWITCH PANEL
  • 7.6 GEARSHIFT CONTROL
  • 7.7 COMPONENTS ON MACHINE

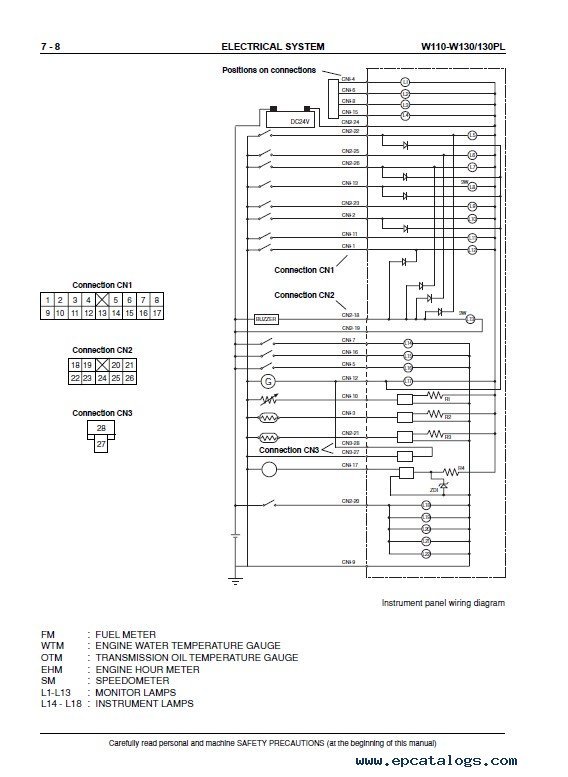

  • MACHINE GROUPS ELECTRIC DIAGRAMS
• SECTION 8 - CAB
  • 8.1 GENERAL DESCRIPTION
  • 8.2 WINDSCREEN WIPERS AND WASHERS
  • 8.3 HEATER
  • 8.4 GLASSES
  • 8.5 REPAIR
  • 8.6 AIR CONDITIONING UNIT
  • 8.7 TROUBLESHOOTING
