Fiat Kobelco SL45B, SL55BH Compact Loader With Accessories Workshop Manual PDF
[07/2002]
Type of catalogue:
repair manual
Make:
FIAT Kobelco
Region:
WorldWide
Inclusive languages:
English, Italian
Amount of disks:
1 CD, PDF file, 754 pages
Availibility
Instant Download
OS:
Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit
Price, USD:
50

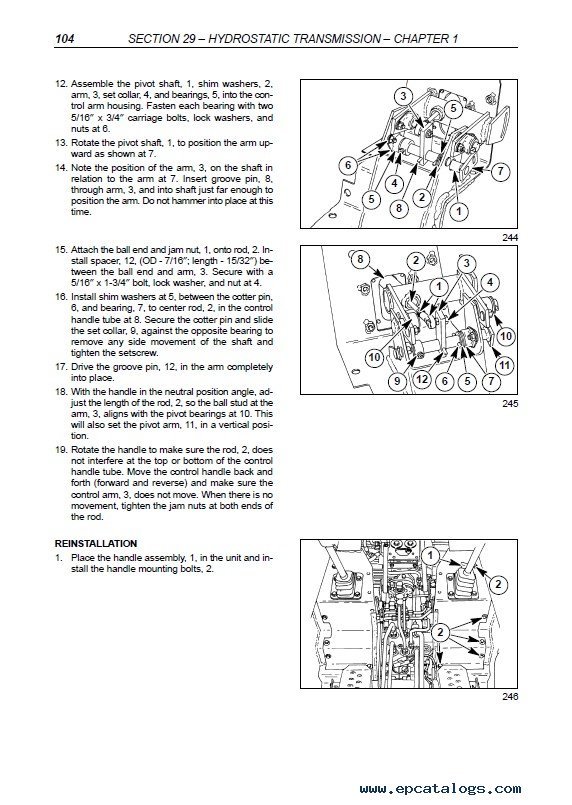

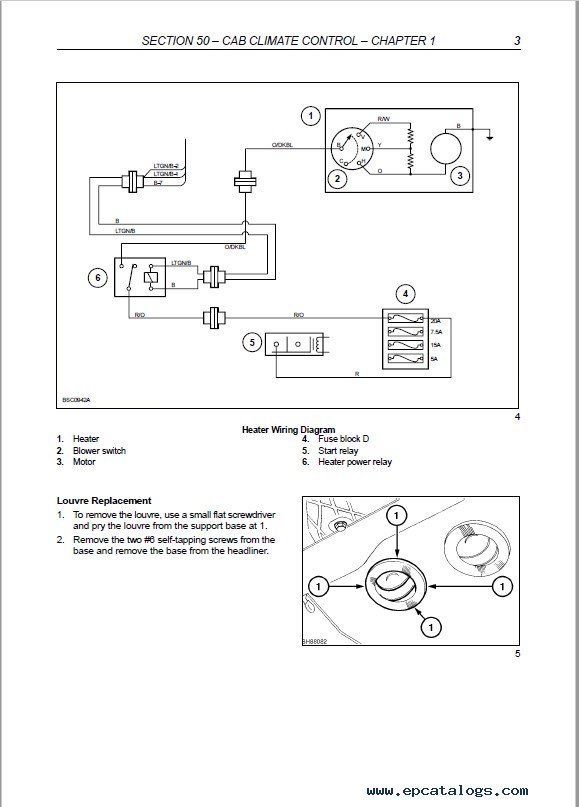

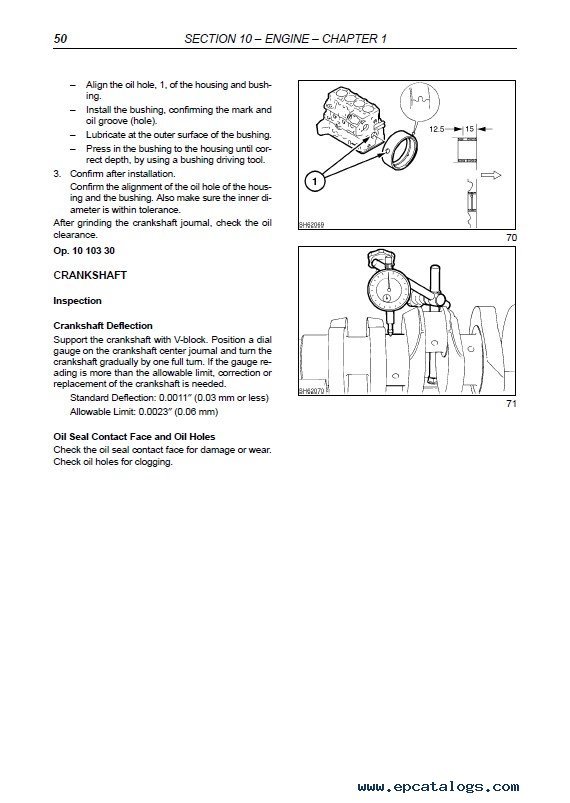

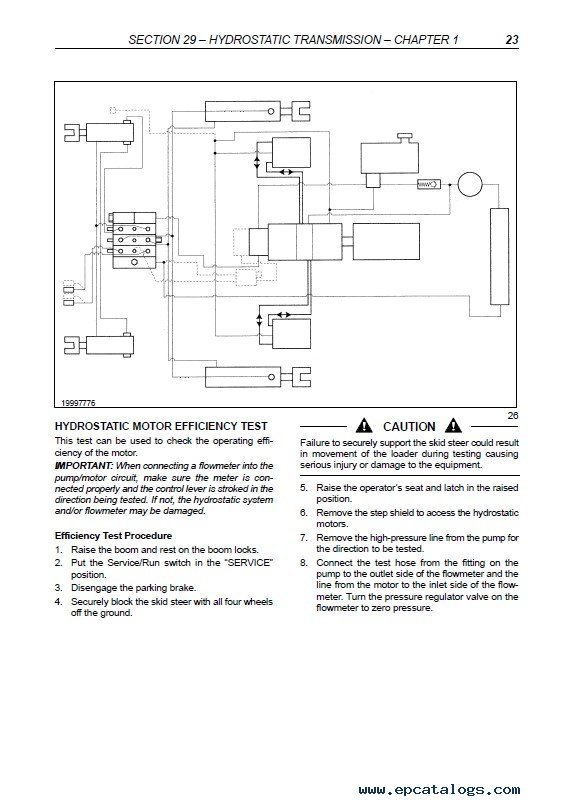

Workshop manual contains repair and maintenance information, special instructions, technical specifications, parts diagrams for Fiat Kobelco Compact Loaders SL45B, SL55BH.
This workshop instruction helps to troubleshoot and solve any problems that arise.
This workshop manual comes in PDF format and includes 754 pages, which are printable. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly. Working with this manual, you can easily copy, save, and print the information you need.
Models covered:
SL45B,
SL55BH.

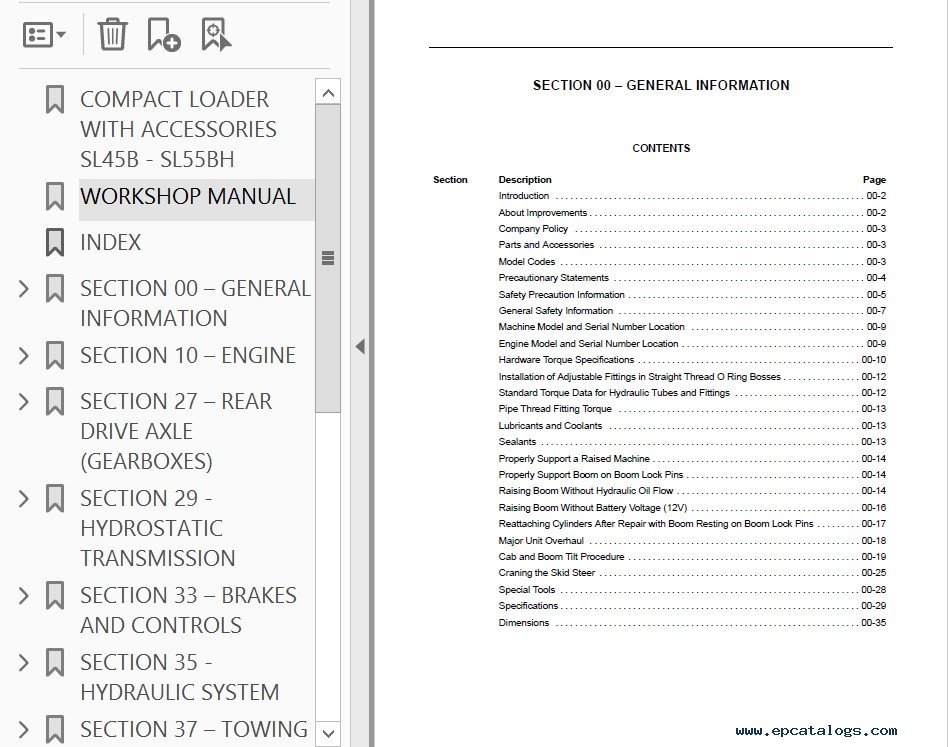

CONTENTS:
SECTION 00 – GENERAL INFORMATION
Introduction
About Improvements
Company Policy
Parts and Accessories
Model Codes
Precautionary Statements
Safety Precaution Information
General Safety Information
Machine Model and Serial Number Location
Engine Model and Serial Number Location
Hardware Torque Specifications
Installation of Adjustable Fittings in Straight Thread O Ring Bosses
Standard Torque Data for Hydraulic Tubes and Fittings
Pipe Thread Fitting Torque
Lubricants and Coolants
Sealants
Properly Support a Raised Machine
Properly Support Boom on Boom Lock Pins
Raising Boom Without Hydraulic Oil Flow
Raising Boom Without Battery Voltage (12V)
Reattaching Cylinders After Repair with Boom Resting on Boom Lock Pins
Major Unit Overhaul
Cab and Boom Tilt Procedure
Craning the Skid Steer
Special Tools
Specifications
Dimensions
SECTION 10 – ENGINE
General Engine Information
Engine Removal
Engine Disassembly Sequence
Valve Seat
Cylinder Block
Piston and Piston Rings
Bearing Holder
Crankshaft
Flywheel and Ring Gear
Camshaft Assembly
Camshaft Gear and Bearing Assembly
Oil Pump
Oil Filter
Water Pump Assembly and Thermostat Housing
Thermostat
Governor
Engine Reassembly Sequence
Reinstallation of Engine into Skid Steer Frame
Fuel Injection Timing
Turbocharger Removal
Shut-off Solenoid
SECTION 27 – REAR DRIVE AXLE (GEARBOXES)
General Information
Gearboxes
Gearbox Removal and Inspection
Gearbox Disassembly
Gearbox Reinstallation
SECTION 29 – HYDROSTATIC TRANSMISSION
General Information
Troubleshooting
Hydrostatic Pump Removal
Hydrostatic Pump Disassembly
Hydrostatic Motor Removal
Hydrostatic Motor Disassembly
Charge Check Valve Removal and Replacement
Steering System
Neutralizer Assembly
Left Control Handle With No Boom Control
Right Control Handle With Auxiliary or Bucket Control
Drive Control Adjustment Procedure
Neutral Adjustment
SECTION 33 – BRAKES AND CONTROLS
General Information
Parking Brake
SECTION 35 – HYDRAULIC SYSTEM
General Information
Main System Pressure Tests
Control Valve Removal
Control Valve Disassembly and Inspection
Hydraulic Pump Removal
Hydraulic System Pump Removal/Disassembly (Without High Flow)
Hydraulic System Pump and High Flow Removal/Disassembly
Boom Cylinder Removal
Boom Cylinder Disassembly
Bucket Cylinder Removal
Bucket Cylinder Disassembly
Pedal Removal (With Boom and Bucket Pedal Controls)
Pedal Removal (With Boom and Bucket Hand Controls)
Hydraulic Cooling, Filter, Reservoir System
Filter System
Filter Removal
Base Removal
Oil Cooler Removal
Oil Reservoir
Oil Reservoir Removal
SECTION 37 – TOWING HOOKS AND BALLASTING
Rear Counterweights
Rear Counterweight Support Removal
SECTION 39 – FRAMES
General Information
Cab and ROPS Removal
SECTION 44 – AXLES AND WHEELS
General Information
Axles
Axle Housing Assembly Removal
Axle Disassembly
Drive Chain and Sprocket Removal
Tyres/Wheels
SECTION 50 – CAB CLIMATE CONTROL
Heater/Defroster (Cab)
SECTION 55 – ELECTRICAL SYSTEM
General Electrical Information
Advanced Warning System
Removal, Installation, and Wiring of Electrical Components
Battery Removal
EIC (Electronic Instrument Cluster) Board Removal
Ignition (Key) Switch Removal
Service/Run Switch Removal
Seat Switch Removal
Road Light and Work Light Switch Removal
Preheat Circuit Breaker Removal
Start Interlock Relay Removal
Alternator Excite Resistor Removal
Start Relay Removal
Preheat Relay Removal
Electric Fuel Pump Removal
Fuel Shutoff Solenoid
Replacement of Fuel Shutoff Solenoid
Air Filter Restriction Indicator Switch Removal
Engine Coolant Temperature Sender Removal
Engine Oil Pressure Switch Removal
Hydrostatic Charge Pressure Switch Removal
Hydraulic Oil Filter Restriction Switch Removal
Hydraulic Oil Temperature Sender Removal
Boom/Bucket Control Valve Spool Lock Solenoids Removal
Main Wire Harness Removal
Road/Work Lights
Alternator (40 Amp Version)
Alternator Removal
Alternator Disassembly
Starter
Starter Motor Removal
SECTION 82 – FRONT LOADER (Boom And Mounting Plate)
