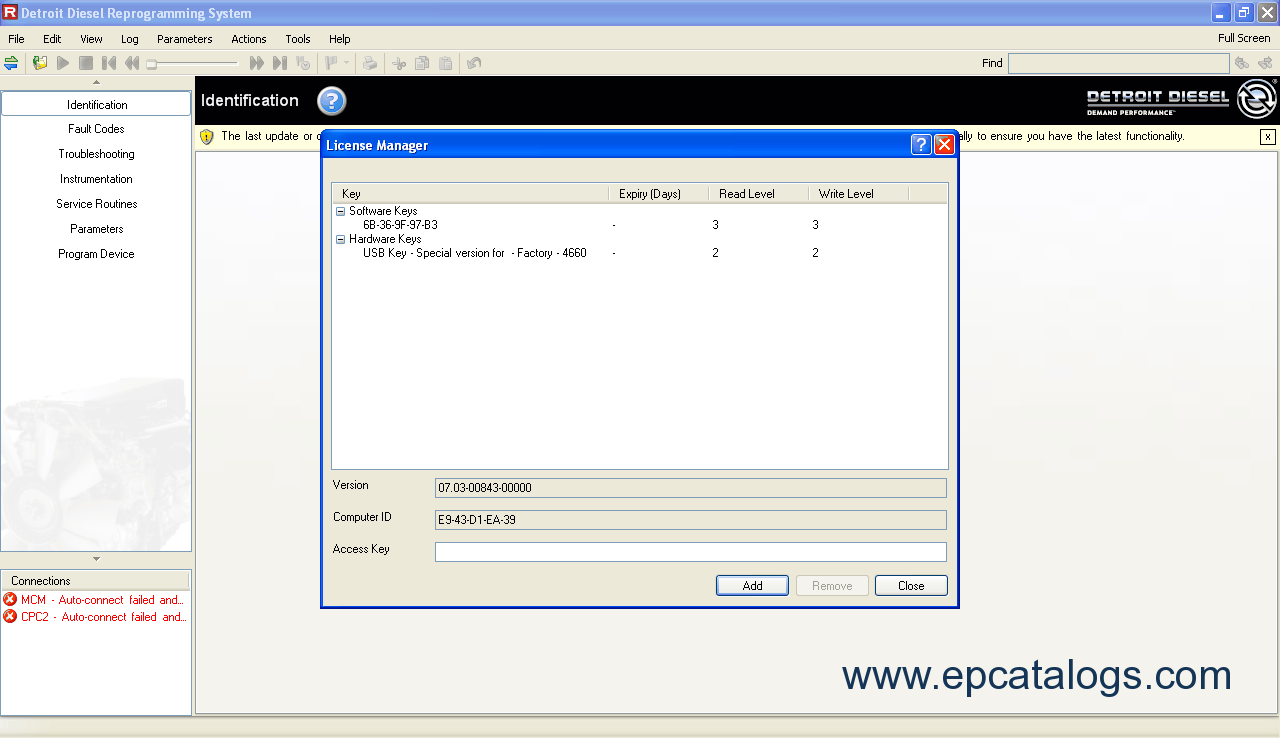

Detroit Diesel Reprogramming Software 7.09 (DDRS 7.09)

Application Detroit Diesel Reprogramming Software 7.09 (DDRS 7.09) is the electronic tool for servicing Detroit Diesel’s EPA07, EPA10, and GHG14 equipped engines (S-60, MBE4000, MBE900, DD13, DD15, and DD16).

Note: It is not backward compatible with earlier versions of Detroit Diesel electronic systems. Those systems will continue to be serviced with DRS 6.23.The DDEC VI electronics system contains two controllers, the MCM (Motor Control Module) and the CPC (Common Powertrain Controller). The DDEC10 system includes the MCM2+, CPC2+ and ACM2 (After treatment Control Module). The GHG14 system includes the MCM2.1, CPC4, ACM2.1, and TCM (Transmission Control Module).

Diagnostic software Detroit Diesel Reprogramming Software 7.09 allows the user to perform the following standard operations on both engine platforms:
1- Perform Standard Fault Code Operations
2- Links to Traditional and Advanced Troubleshooting Information
3- Read Actual Values
4- Configure and Manage Parameters
5- Perform Service Routines
6- Playback Logs of All Connected Activity
7- Automatic Software Updates from our server

Software Detroit Diesel Reprogramming Software 7.09 includes following enhancements:
Active faults can now be moved to the top of each channel ECM listing
Fuel Injection System (FIS) fuel filter panel added
Transmission Control Module (TCM) instrument panel: TCM learned values
TCM clear checksum fault dialog
Detroit Transmission dynamometer mode dialog
TCM clutch apply leak test
TCM shift abort counter
Variable Speed Fan Control
Parameter tab for Green House Gas (GHG) emission parameters
Generic scan tool support

DDRS Component Minimum
Windows XP, Windows Vista or Windows 7 (32bit & 64 bit)
1.8 Ghz processor
1.0 GB RAM
40 Gigabyte Hard drive with 20 Gigabyte free
32x CD ROM Drive
Monitor and graphics card supporting 1024 x 768 resolution and
16-bit color
1 free USB port
Internet or Mainframe Connection to DDC Server (for updates)

Before installing Detroit Diesel Reprogramming Software 7.09 you must remove any version of Detroit Diesel’s software to minimize the chance of any conflicts with older versions of the software. Please use the Windows Control Panel’s “Add / Remove Software” option to perform this operation. In order for DDRS 7.09 to work on a PC with the proper hardware and operating system specifications other programs must also be installed. They are:

1 - Microsoft Windows Installer 3.1 or higher
2 - Microsoft .Net Framework 3.5 SP1
3 - Lizardtech DjVu Control
4 - Proper drivers for your translator box hardware
