Claas RU 450 Repair Handbook PDF

This Electronic Repair manual is to help maintain continuous operation and thus the high value Claas corn picker attachments through careful maintenance and service-related inspection.

Contents:

• 1. General Information
  • Introduction
  • Introduction to the CLAAS Repair Manual
  • Especially Important
  • General Information for Repairs
  • Explanation of the Picture Symbols
  • Safety
  • Important Operation Information
  • Technical Data
  • Machine Overview RU 450
• 2. Auger Trough
  • Removing/Putting on the Left and Right Protection Cover
  • Removing/Putting on the Crop Guard and Tube Carrier
  • Removing/Putting on Middle Crop Guard and Crop Tube

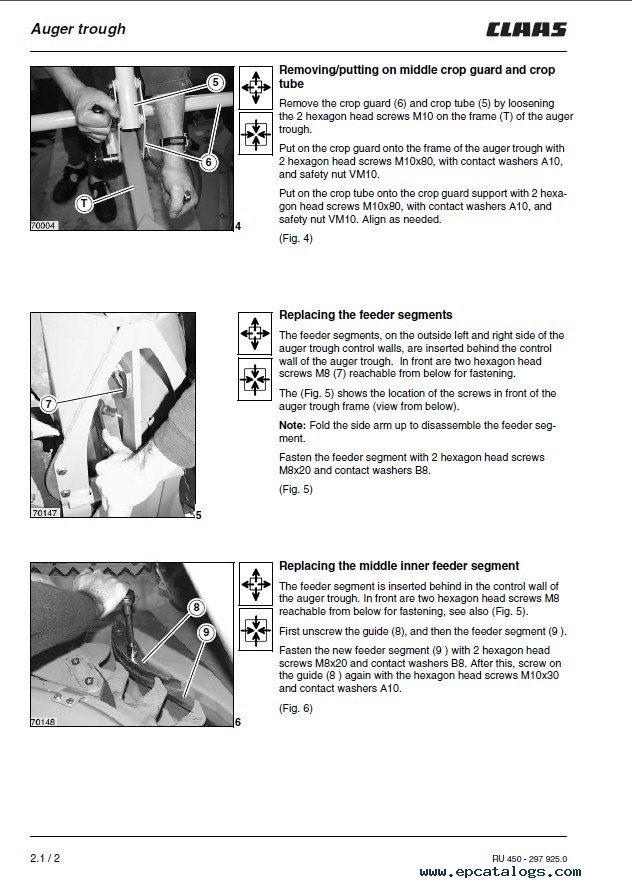

  • Replacing the Feeder Segments
  • Replacing the Middle Inner Feeder Segment
  • Replacing the Feed Shear Bar
  • Changing and Installing the Guide Plates
  • Replacing the Feed Plates
  • Replacing the Scrapers
• 3. Machine Frame
  • Removing/Putting on the Lock
  • Removing/Putting on the Left and Right Side of the Supporting Arm
  • Indtalling the Rotor Transmission
  • Putting in the Angular Transmission With the Tapered Clutch
  • Replacing the Tapered Clutch
  • Removing the Supporting Arm
  • Installing the Supporting Arm
• 4. Knife/Feed
  • Intermediate Points
  • Removing/Installing the Intake Plates
  • Removing/Installing the Cutting Disks
  • Intake Taper
• 5. Hydraulic
  • Removing the Hydraulic Cylinder
  • Taking Apart the Hydraulic Cylinder
  • Putting the Cylinders Back Together
  • Installing the Hydraulic Cylinder
• 6. Special Equipment
  • Removing/Putting on the Safety Covers
  • Lodged Corn Auger
  • Autopilot
• 7. Drives
  • Auger Drive
  • Knife Drive
  • Bevel Drive
  • Transmission
  • Main Transmission (8)
  • Main Transmission - Shift Transmission (H)
  • Bevel Transmission
  • Rotor Transmission
  • Scraper Transmission
  • Angular Transmission
• 8. Universal Drive Shaft / Clutches

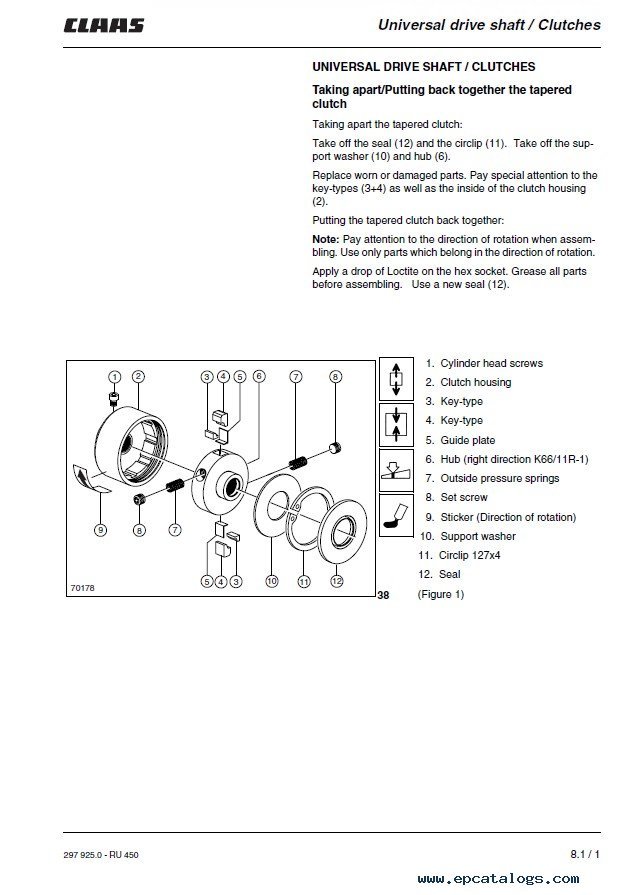

  • Taking Apart / Putting Back Together the Tapered Clutch

Technical information helps you to distinguish a serious problem from standard maintenance or scheduled service and also will help to decide on your own, to save time and money. This comprehensive manual is suitable for professional technicians and novice mechanics alike.

Features of the Manual
Format: Repair handbook comes in PDF format.
Language: English
Pages: 248
Compatible with all versions of Windows, Mac, Linux, iPhone, iPad, and Android
This repair manual includes illustrations, detailed electrical and hydraulic diagrams, which help to get a detailed description with drawings of all systems of machinery Claas.

FAQs
How do I download the manual?
You can purchase this guide on our website in the easiest way - by clicking on the buy now. Within a few minutes, you will receive an email with all the information on installation and use. Please check your spam/junk folder if you don't see it in your inbox.

Is the manual printable?
Yes, all pages are printable.

Still have questions?

Contact us to obtain additional information or assistance about the work with this manual.
