Original CNH DPA5 Diagnostic Service Tool Adapter Cable Kit + CNH EST 9.12

The General Features of Case New Holland Electronic Service Tool

The CNH EST hardware works with the CNH EST software, a Windows 10/11 desktop application.

The diagnostic kit uses communication protocols such as J1939 and J1708, which are standard in heavy-duty vehicles for diagnostics and communication between electronic control modules. It allows the CNH DPA5 Adapter to be used in other OEM and 3rd-party diagnostic applications such as Cummins Insite, Volvo PTT, Allison DOC, Bendix ACOM, and others.

The 2 CAN and Kline protocols are supported for CASE and New Holland heavy-duty vehicles with Iveco engines.

The Case New Holland (CNH) DPA5 Adapter Kit (Package) Contains:

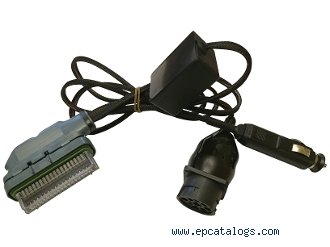

• 380002884 - Adapter

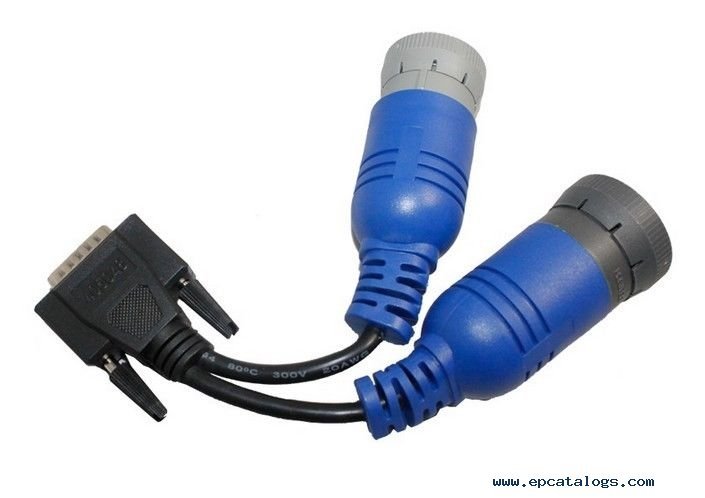

• 6/9 pin "Y" cable
• USB Cable
• CNH Electronic Service Tool v9.12 Software

Brands Covered by CNH Industrial Group

• CASE IH AG
• CASE CE NA
• CASE CE EUR
• NEW HOLLAND AG
• NEW HOLLAND CE (Heavy)
• NEW HOLLAND CE (Light)
• STEYR AG
• FLEXICOIL
• KOBELCO CE

Minimum PC Specifications

• Processor: Intel Core i5 Processor or higher(manufactured in last 3 years);
• RAM Memory: 8 GB or greater;
• Operating System: Windows OS: 64-bit (Mandatory)
• Windows 10/11 PRO (Recommended)
• Hard Drive: 250 GB or greater;
• Ports: One 9 pin Serial port (preferred) OR USB to RS-232
• Converter - FTDI Chipset)
• Two USB ports
• 10/100 Ethernet
• WiFi 802.11b / g
• Bluetooth
• Mobile Wireless (recommended)
