Bomag MPH362-2 & MPH364-2 Soil Stabilizer & Asphalt Recycler Parts Catalog + Repair Instructions PDF

These manuals includes detailed spare parts information, full instructions for repair and maintenance for soil stabilizer and asphalt recyclers Bomag following models:
MPH362-2,
MPH364-2.
These manuals come in PDF format. To view the information you must have any PDF Reader. Working with these manuals, you can easily copy, save, and print the information you need. If necessary, you can print pages, pictures, charts, or the entire manual completely.

This set includes:

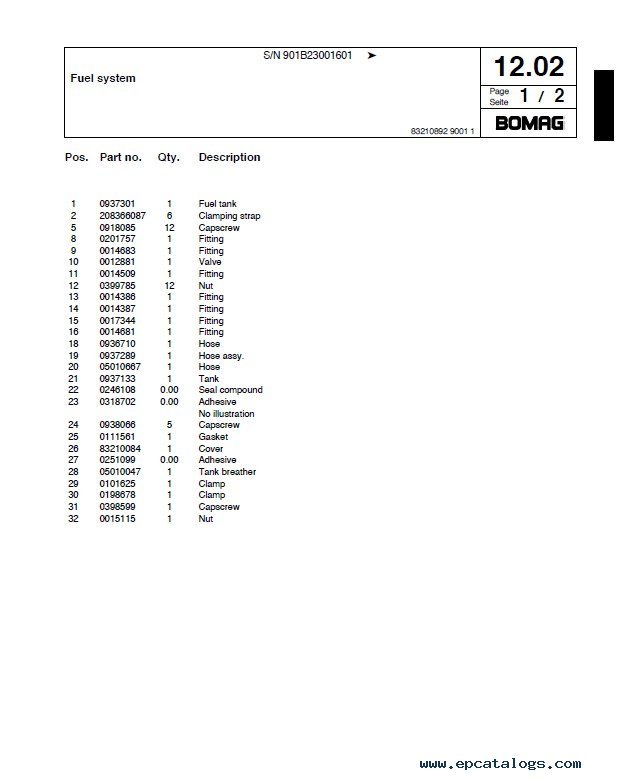

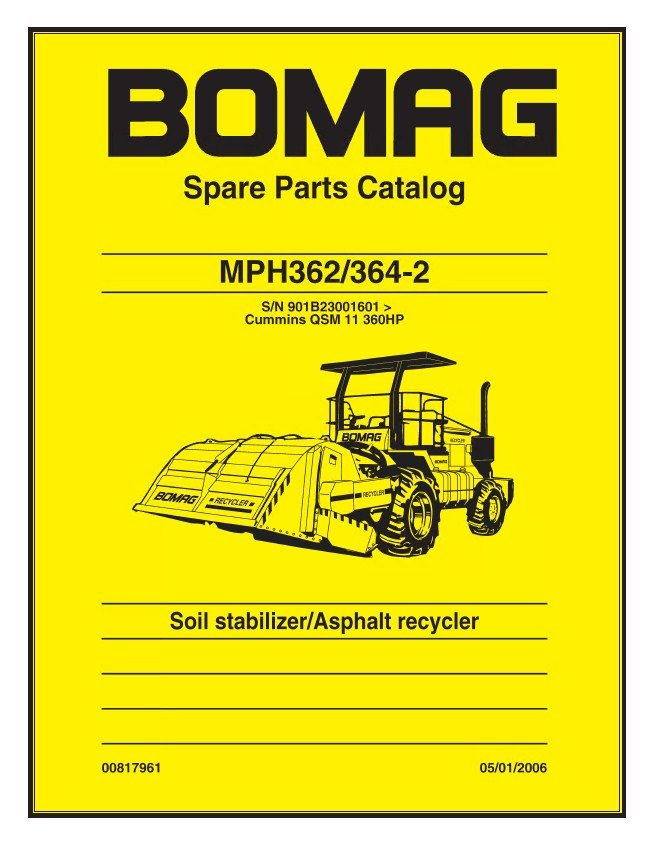

- Bomag MPH362-2 & MPH364-2 Soil Stabilizer & Asphalt Recycler Spare Parts Catalog - 592 pages;

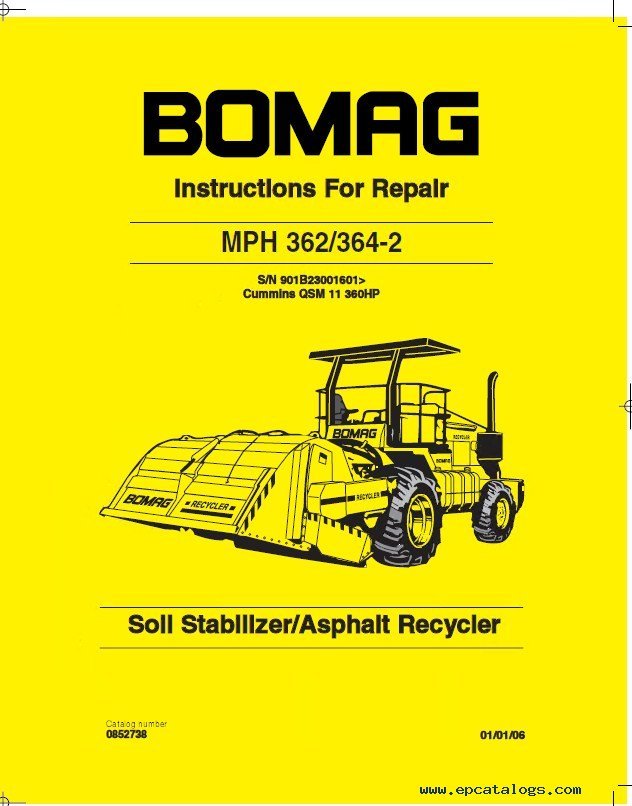

- Bomag MPH362-2 & MPH364-2 Soil Stabilizer & Asphalt Recycler Instructions For Repair - 297 pages.

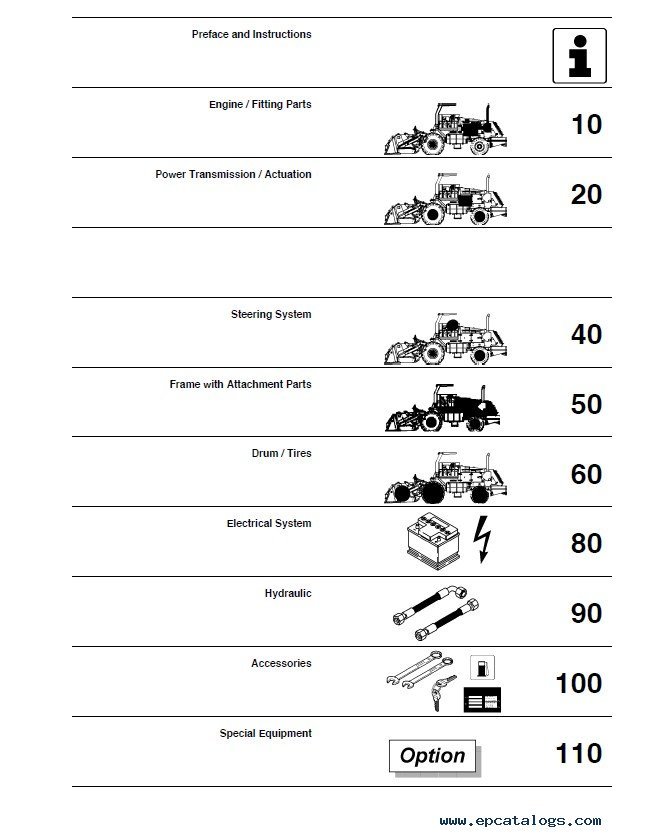

Contents of Spare Parts Catalog:
Preface and Instructions
Engine / Fitting Parts
Power Transmission / Actuation
Steering System
Frame with Attachment Parts
Drum / Tires
Electrical System
Hydraulic
Accessories
Special Equipment

Contents of Repair Instructions:

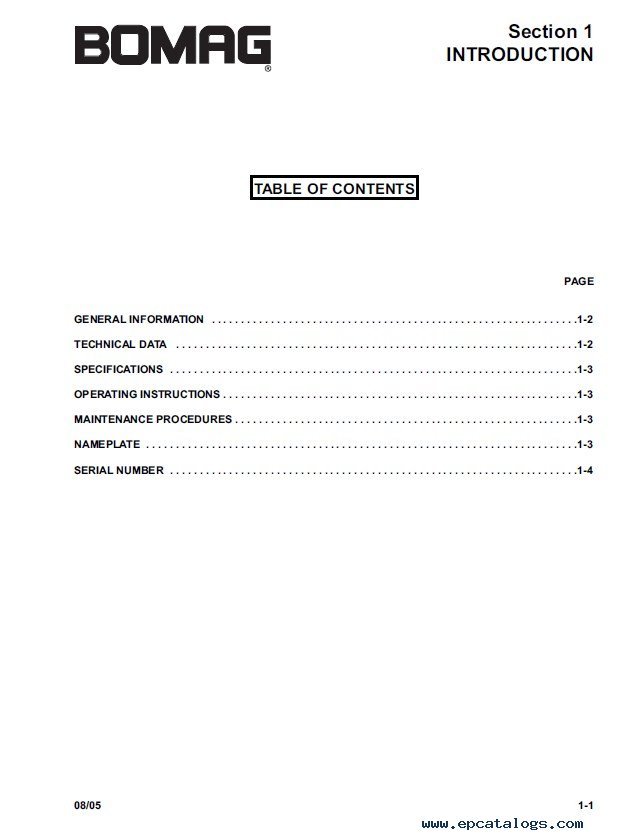

• Section 1 - Introduction
  • General Information
  • Technical Data
  • Specifications
  • Operating Instructions
  • Maintenance Procedures
  • Nameplate
  • Serial Number
• Section 2 - Specifications
  • General Information
  • Engine Specifications
  • Engine Inlet Air Filtration Specifications
  • Electrical Specifications
  • Transmission and Final Drive System Specifications
  • Brake System Specifications
  • Steering System Specifications
  • Rotor System Specifications
  • Dimension Specifications
  • Weight Specifications
  • Capacity Specifications
• Section 3 - Operations
  • Operating Features and Controls
  • General Information
  • Machine Inspection Upon Receipt from Carrier
  • Manual Code Designations
  • Safety Precautions
  • Personal Safety Information
  • Controls
  • Checks with the Engine Stopped
  • Preparing the Machine for Starting
  • Mounting and Dismounting
  • Starting the Engine
  • Powerview Multifunction Monitoring System - Supported
  • Information Access and Navigation within the System
  • Checks with Engine Running
  • Operating Precautions
  • Preparation for Work Operations
  • Starting Traction (Transport Operation)
  • Stopping Traction
  • Asphalt Pulverization Information
  • Operating Instructions
  • Work Operation
  • Braking Systems
  • Parking and Storage
  • Stopping the Engine
  • Backup Travel Control System
  • Towing Instructions
  • Transportation Data
• Section 4 - Maintenance
  • General Information
  • Maintenance Schedule
  • Maintenance
  • Preventive Maintenance Services
  • Preventive Maintenance of Major Components
  • Repair Maintenance
  • Maintenance Procedures
  • Electrycal System Maintenance
  • Electrical Options
  • Miscellaneous Information
  • Winterization Procedures
  • Reference
• Section 5 - Frame, Seat and Protective Structure
  • General Information
  • Frame
  • Seat and Seat Belt
  • Seat Belt Replacement
  • Retractor Mechanism Side
  • Buckle Side
  • Roll Over / Falling Object Protective Structure (ROPs / FOPs)
  • Checks and Service Procedures
  • Removal
  • Installation
  • Counterweights
• Section 6 - Engine, Cooling, Exhaust, Fuel System, Throttle
  • General Information
  • Exhaust System
  • Removal
  • Installation
  • Fuel System
  • Right Side Fuel Tank
  • Removal
  • Installation
  • Left Side Fuel Tank
  • Removal
  • Installation
  • Throttle Control
  • Removal
  • Installation
  • Charge Air Cooling System
  • Cooling System
  • Radiator / Oil Cooling Assembly
  • Removal
  • Installation
  • Engine
  • Removal
  • Installing Engine
  • Enigne Installation
• Section 7 - Electrical
  • General Information
  • Electrical System Major Component Description
  • Switches
  • Fuses and Fusible Links
  • Relays
  • Solenoids
  • Sending Units and Pressure Switches
  • Powerview Monitoring System
  • Powerview Display
  • Gauges
• Section 8 - Hydraulics
  • General Information
  • Description
  • Hydraulic Supply and Return System
  • Case Manifold
  • Tank Manifold
  • Thermal Bypass Assemblies
  • Hydraulic Tank
  • Hydraulic Drive Travel System
  • Travel Charge Filter Assembly
  • Travel Motors
  • Rear Travel Motor
  • Front Travel Motor
  • Travel Pump Assembly
  • Inspection and Pressure Check Procedure

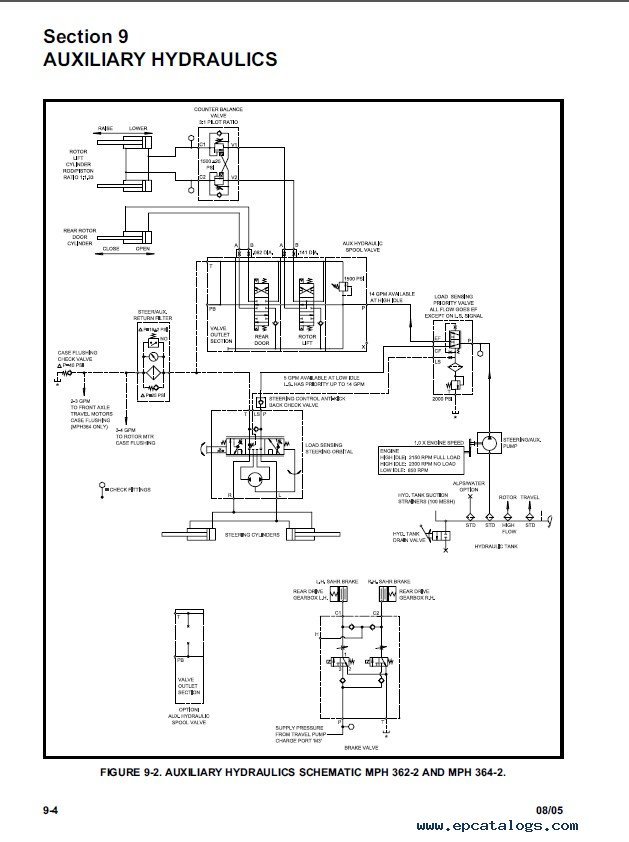

  • Schematics
• Section 9 - Auxiliary Hydraulics
  • General Information
  • Cleanliness
  • Counterbalance Valve
  • Auxiliary Function(s) - Double Spool Valve
  • Rotor Lift Cylinder
  • Rear Door Cylinder
  • Auxiliary Hydraulics Pressure Checks
• Section 10 - Rear Drive Axle Assembly, Front Steering Axle Assembly, Wheels and Tires
  • General
  • Cleanliness
  • Rear Drive Axle Assembly
  • Front Steering Axle Assembly
  • Wheels and Tires
• Section 11 - Brake and 2-Speed
  • Description
  • Cleanliness
  • Brake Valve Assembly
  • 2-Speed Valve Assembly
• Section 12 - Steering
  • General
  • Description
  • System Operation
  • Cleanliness
  • Priority Valve Assembly
  • Removal
  • Steering Control Assembly
  • Filter Assembly
  • Steering Cylinder
  • Tandem Gear-Pump
  • Steering Wheel
  • Steering Column
  • Hydraulic Tank
  • Steering System Pressure Checks
  • Troubleshooting
• Section 13 - Rotor Hydraulic System
  • General Information
  • Description
  • Cleanliness
  • Rotor Charge Filter
  • Flushing Valve
  • Rotor Pump
• Section 14 - Rotor System
  • General
  • Description
  • Cleanliness
  • Rotor Hood
  • Rotor Lift Cylinder
  • Rear Door (Tailgate) Cylinder
  • Rotor and Arms
  • Rotor Door and Depth Indicator
  • Depth Indicator
  • Rotor Depth Pivot Shaft
• Section 15 - Options
  • Water System
  • MPH ALPS 4.0 System
