Bomag MPH 122 Soil Stabilizer / Asphalt Recycler Instructions for Repair PDF

These repair instructions contain all necessary information for training and repair work for Bomag MPH 122 Soil Stabilizer and Asphalt Recycler.
Notes on maintenance, care and trouble shooting can be found in the operating and maintenance instructions.
This instruction manual contains only assembly groups needed for this type of machine.
The repair instructions describe the removal or dismantling and assembly of components and assembly groups.
The repair of disassembled assembly groups is described as far as this makes sense with respect to available tools and spare parts supply and as far as it can be understood by a skilled mechanic.
This manual is a file PDF, which contains 888 pages, any one of which we can be printed easily. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

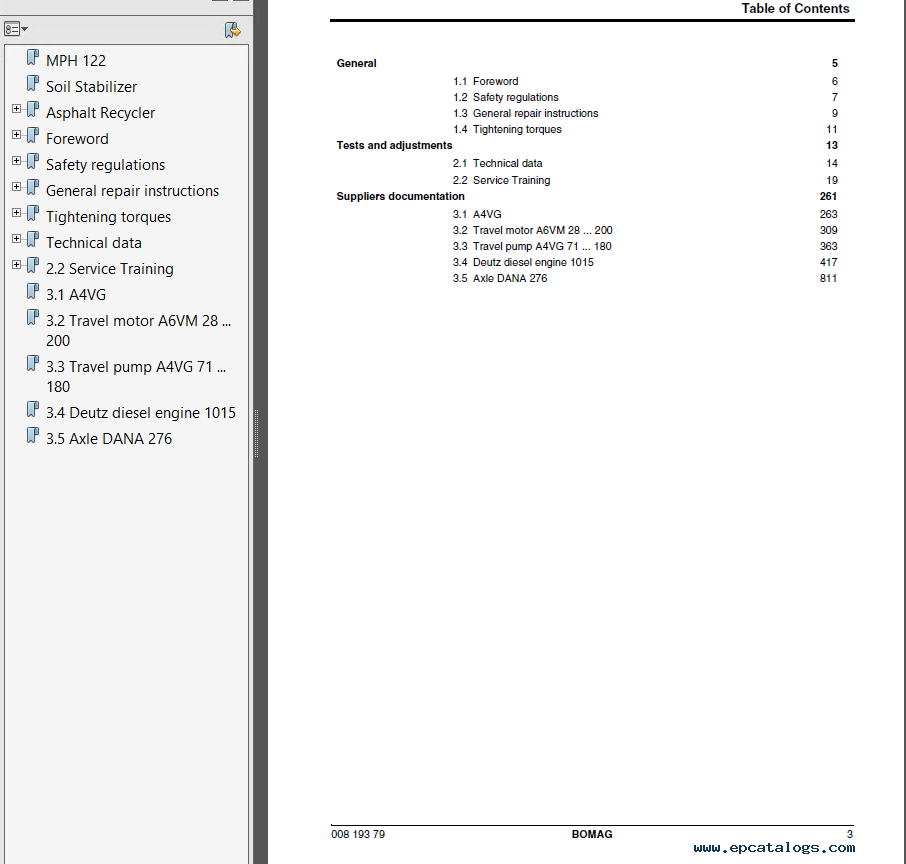

Contents:
General
1.1 Foreword
1.2 Safety regulations
1.3 General repair instructions
1.4 Tightening torques

Tests and adjustments
2.1 Technical data
2.2 Service Training

Suppliers documentation
3.1 A4VG
3.2 Travel motor A6VM 28 ... 200
3.3 Travel pump A4VG 71 ... 180
3.4 Deutz diesel engine 1015
3.5 Axle DANA 276
