Allison DOC 8.0 - Read & Reprogramming

[2010]

Type of catalogue:	Diagnostic Software
Make:	Allison Transmission
Region:	WorldWide
Inclusive languages:
Amount of disks:
Price, USD:	190
Buy now

The Allison DOC™ (Diagnostic Optimized Connection) For PC–Service Tool is a diagnostic system designed for use with Allison’s 3000/4000 Product Families transmissions, 1000/2000 Product Families transmissions, and transmissions using CEC2/CEC1 controls. This PC-based diagnostic program is capable of reading from an Allison 4th Generation Control System Module TCM, WTEC II and WTEC III Electronic Control Units (ECU), a 1000/2000/2400 Series™ Transmission Control Module (TCM), and a CEC2 and CEC1 Electronic Control Units (ECU).

Allison DOC™ For PC–Service Tool performs the following:

· Monitors 3000/4000 Product Families Transmission Control Module (TCM) data

· Monitors 1000/2000 Product Families Transmission Control Module (TCM) data

· Monitors WTEC II/III and CEC2 Electronic Control Unit (ECU) data

· Monitors CEC Electronic Control Unit data, using a proprietary protocol and the Allison CEC translator device

· Displays multiple transmission parameters

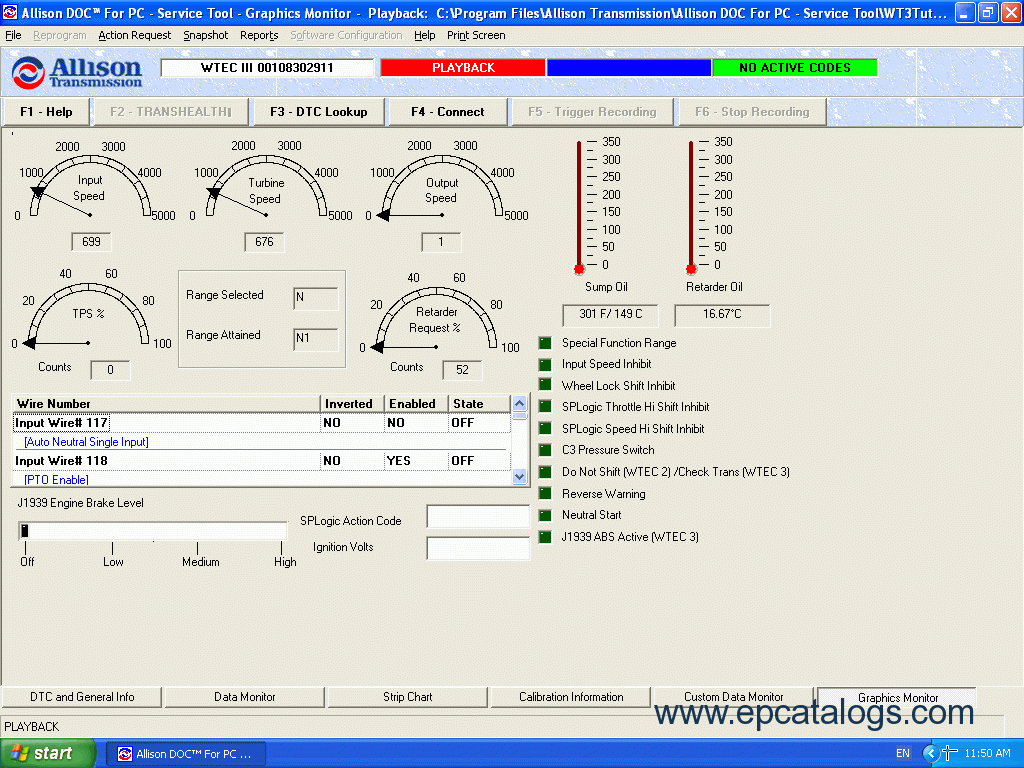

· Displays a graphical instrument panel with analog and digital gauges

· Displays a graphical strip chart

· Records and plays back diagnostic sessions

· Prints diagnostic reports

· Reprograms selected TCM parameters:

TCM Reprogramming allows for modifying Customer Modifiable Constants (CMCs) and Input/Output (I/O) information. Reprogramming is defined as modifying CMCs and I/Os in an existing calibration. Reflashing or Recalibration is defined as loading a new application program (firmware) and/or calibration into a TCM.

Allison DOC™ For PC—Service Tool provides the following features:

A Microsoft Windows®/PC look and feel

Security measures to control reprogramming TCM parameters

Integrated Help with training videos

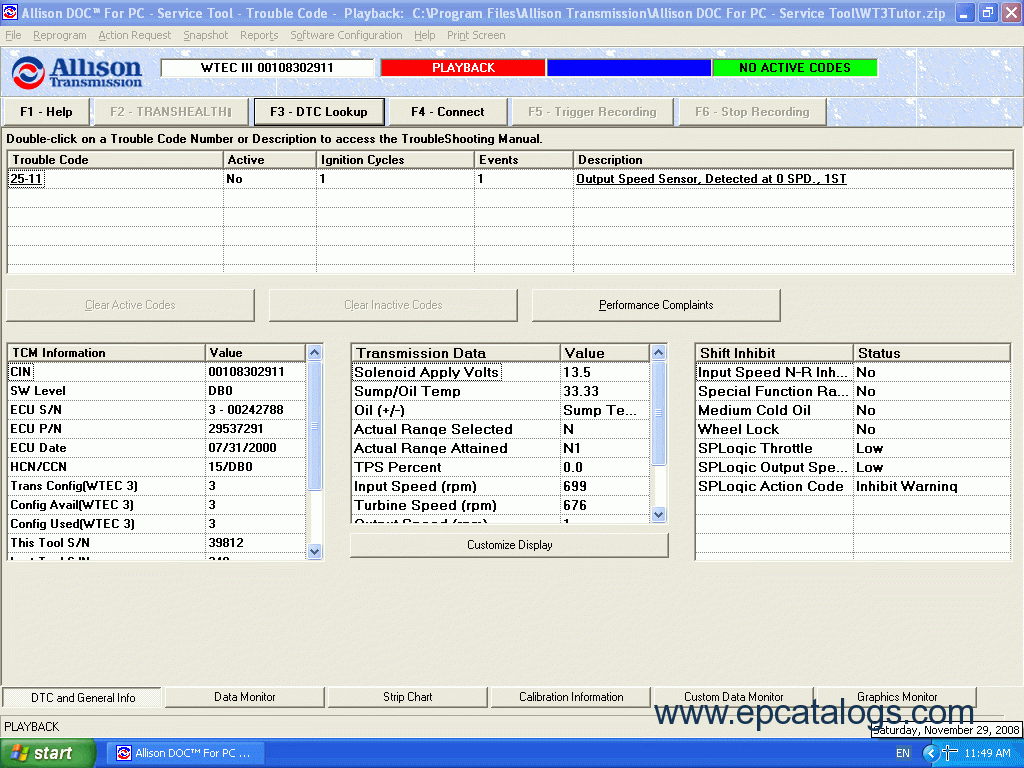

Diagnostic Trouble Code information with a direct link to 3000/4000 Product Families Troubleshooting Manuals

Diagnostic Trouble Code information with a direct link to the 1000/2000 Product Families Troubleshooting Manual

Diagnostic Trouble Code information with a direct link to CEC 2 Troubleshooting Manuals

A demo mode using prerecorded data

SmartConnect for detecting the PC-to-vehicle translation device and communication link

Allison DOC™ For PC—Service Tool is compliant with applicable TMC Recommended Practices, GM Online Standards, SAE Standards, and CE Standards

Allison DOC™ For PC—Service Tool is RP1210A compliant.

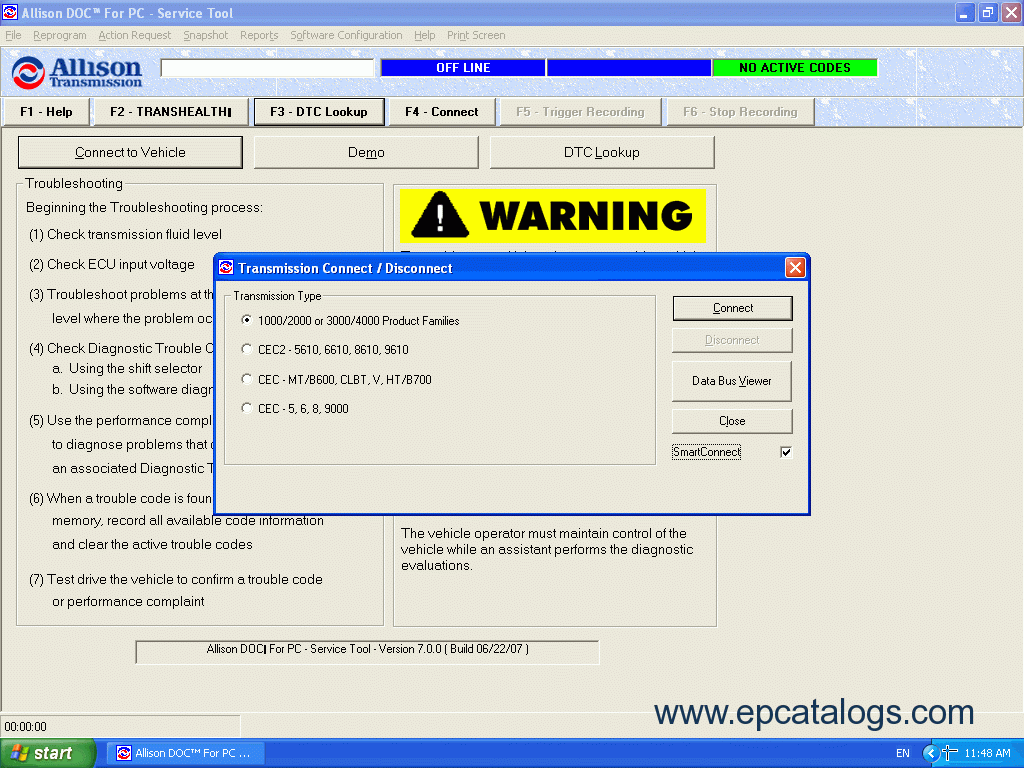

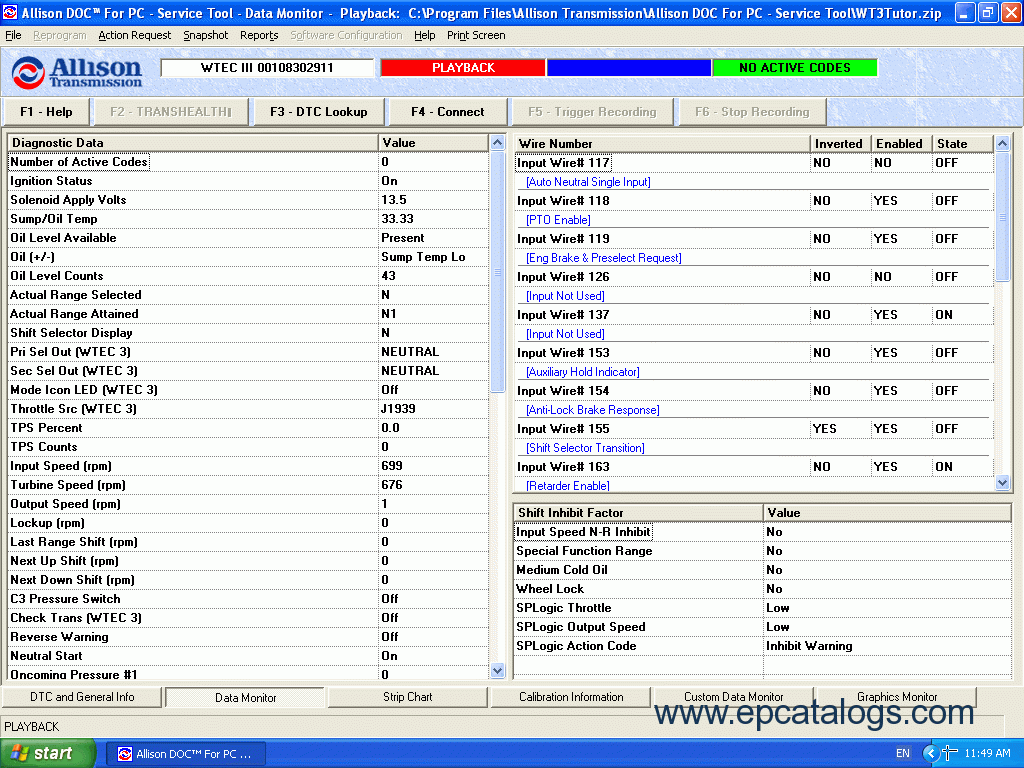

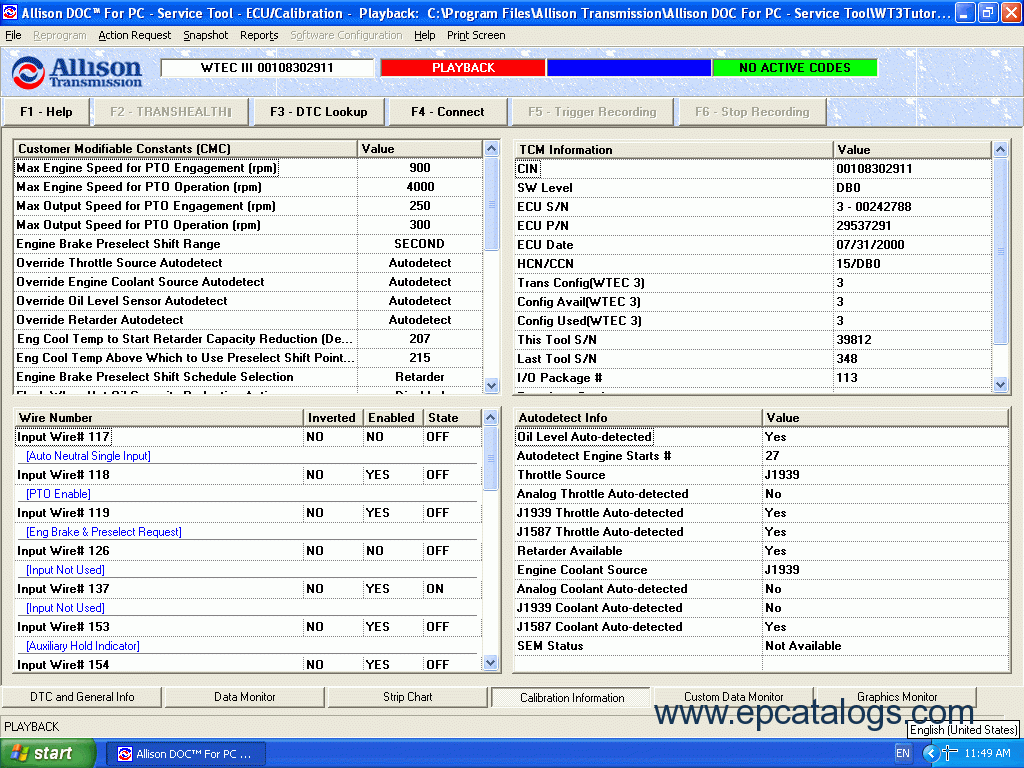

Screenshots:
